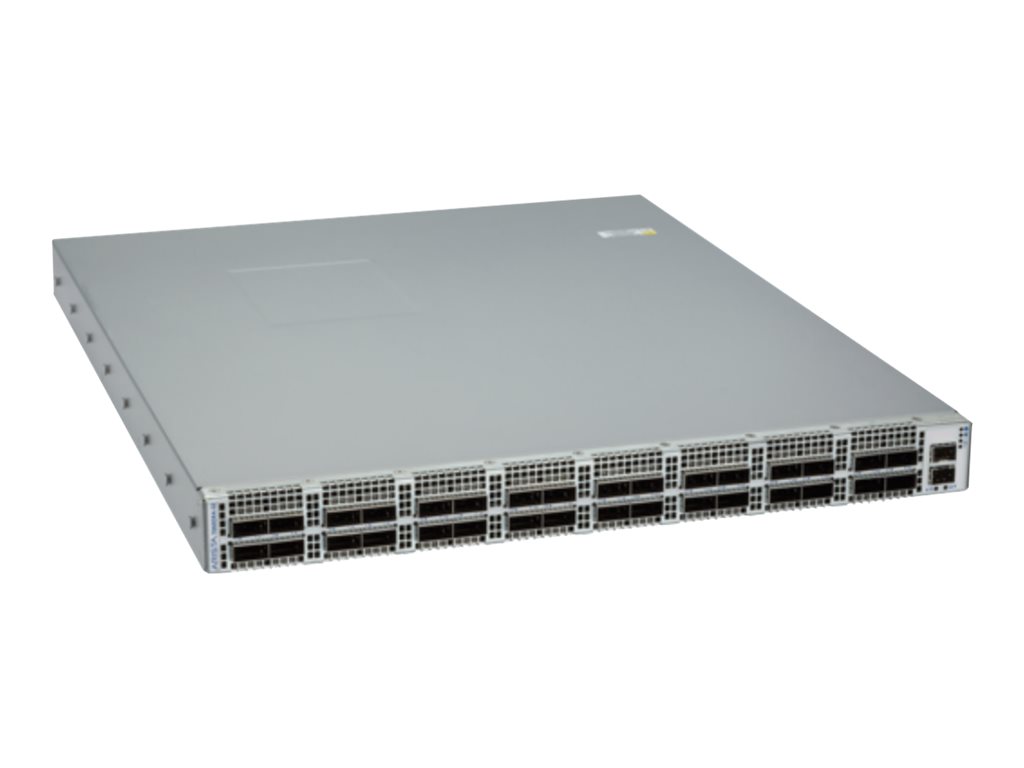

Arista DCS-7060DX4-32
Arista 7060X4, 32x400GbE QSFP-DD switch
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Arista 7060X4, 32x400GbE QSFP-DD switch
| Authentication Method: | RADIUS, TACACS+ |
|---|---|
| Capacity: | Virtual interfaces (VLANs): 4096 ¦ IGMP groups: 8000 ¦ ACL entries: 2700 ¦ Multiple Spanning Tree Protocol instances: 62 ¦ RSTP instances: 62 ¦ ACL entries (egress): 512 ¦ IPv4 routes: 480000 ¦ IPv4 routes: 300000 ¦ ECMP groups: 4000 ¦ MAC addresses: 7200 |
| Compliant Standards: | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1Qaz, IEEE 802.3bs, IEEE 802.3cm, UL, VCCI, C-Tick, BSMI, EN 61000-3-2, EN55022, EN 61000-3-3, EN55024, CB, CCC, FCC, IEC 60950-1, EN 60950-1, NRTL, EAC, MSIP, RoHS 2011/65/EU, EMC 2004/108/EC, LVD 2006/95/EC, WEEE 2012/19/EU, EN 300 386, IEEE 1588, AAA, CSA 60950-1, EN61000-3-11, EN61000 |
| Depth: | 67 cm |
| Device Type: | Switch - 32 ports - L3 - Managed |
| Enclosure Type: | Rack-mountable 1U |
| Features: | Flow control, Layer 3 switching, Layer 2 switching, NAT support, load balancing, VLAN support, IGMP snooping, Syslog support, port mirroring, MAC address filtering, IPv6 support, High Availability, sFlow, STP support, RSTP support, MSTP support, DCBX supp |
| Flash Memory: | 8 GB |
| Height: | 4.4 cm |
| Humidity Range Operating: | 5 - 95% |
| Interfaces: | 1 x 1000Base-T RJ-45 management ¦ 1 x management (RS-232) RJ-45 ¦ 1 x USB ¦ 32 x 400Gbit LAN QSFP-DD ¦ 2 x 10Gbit LAN SFP+ |
| Jumbo Frame Support: | 9216 bytes |
| MAC Address Table Size: | 72K entries |
| Manufacturer: | Arista |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 70 °C |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Throughput: 25.6 Tbps ¦ Latency: 700 ns ¦ Packet throughput: 8 Bpps |
| Ports: | 32 x 400 Gigabit QSFP-DD + 2 x SFP+ |
| Power Device: | Internal power supply (not installed) - hot-plug |
| Power Redundancy: | Optional |
| RAM: | 8 GB |
| Remote Management Protocol: | SNMP 1, SNMP 2, RMON 2, RMON, Telnet, SNMP 3, SSH-2, CLI |
| Routing Protocol: | OSPF, IS-IS, RIP-2, BGP, IGMPv2, IGMP, VRRP, PIM-SM, IGMPv3, OSPFv3, PIM-SSM, ECMP, policy-based routing (PBR), BGP-MP |
| Subtype: | 400 Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 120/230 V |
| Weight: | 9.5 kg |
| Width: | 48.3 cm |
| GPSR - economic actor: | Arista, Irland, 2 Georges Dock, Dublin, 1, emea-sales@arista.com |
|---|---|
| GPSR - product manufacturer: | Arista, Irland, 2 Georges Dock, Dublin, 1, emea-sales@arista.com |
| GPSR - EU responsible person: | Arista, Irland, 2 Georges Dock, Dublin, 1, emea-sales@arista.com |
| EU Data-Act-Url: | https://www.arista.com/en/support/toi/tag/compliance |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
Arista 7060X4, 32x400GbE QSFP-DD switch
| Authentication Method: | RADIUS, TACACS+ |
|---|---|
| Capacity: | Virtual interfaces (VLANs): 4096 ¦ IGMP groups: 8000 ¦ ACL entries: 2700 ¦ Multiple Spanning Tree Protocol instances: 62 ¦ RSTP instances: 62 ¦ ACL entries (egress): 512 ¦ IPv4 routes: 480000 ¦ IPv4 routes: 300000 ¦ ECMP groups: 4000 ¦ MAC addresses: 7200 |
| Compliant Standards: | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1Qaz, IEEE 802.3bs, IEEE 802.3cm, UL, VCCI, C-Tick, BSMI, EN 61000-3-2, EN55022, EN 61000-3-3, EN55024, CB, CCC, FCC, IEC 60950-1, EN 60950-1, NRTL, EAC, MSIP, RoHS 2011/65/EU, EMC 2004/108/EC, LVD 2006/95/EC, WEEE 2012/19/EU, EN 300 386, IEEE 1588, AAA, CSA 60950-1, EN61000-3-11, EN61000 |
| Depth: | 67 cm |
| Device Type: | Switch - 32 ports - L3 - Managed |
| Enclosure Type: | Rack-mountable 1U |
| Features: | Flow control, Layer 3 switching, Layer 2 switching, NAT support, load balancing, VLAN support, IGMP snooping, Syslog support, port mirroring, MAC address filtering, IPv6 support, High Availability, sFlow, STP support, RSTP support, MSTP support, DCBX supp |
| Flash Memory: | 8 GB |
| Height: | 4.4 cm |
| Humidity Range Operating: | 5 - 95% |
| Interfaces: | 1 x 1000Base-T RJ-45 management ¦ 1 x management (RS-232) RJ-45 ¦ 1 x USB ¦ 32 x 400Gbit LAN QSFP-DD ¦ 2 x 10Gbit LAN SFP+ |
| Jumbo Frame Support: | 9216 bytes |
| MAC Address Table Size: | 72K entries |
| Manufacturer: | Arista |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 70 °C |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Throughput: 25.6 Tbps ¦ Latency: 700 ns ¦ Packet throughput: 8 Bpps |
| Ports: | 32 x 400 Gigabit QSFP-DD + 2 x SFP+ |
| Power Device: | Internal power supply (not installed) - hot-plug |
| Power Redundancy: | Optional |
| RAM: | 8 GB |
| Remote Management Protocol: | SNMP 1, SNMP 2, RMON 2, RMON, Telnet, SNMP 3, SSH-2, CLI |
| Routing Protocol: | OSPF, IS-IS, RIP-2, BGP, IGMPv2, IGMP, VRRP, PIM-SM, IGMPv3, OSPFv3, PIM-SSM, ECMP, policy-based routing (PBR), BGP-MP |
| Subtype: | 400 Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 120/230 V |
| Weight: | 9.5 kg |
| Width: | 48.3 cm |
| GPSR - economic actor: | Arista, Irland, 2 Georges Dock, Dublin, 1, emea-sales@arista.com |
|---|---|
| GPSR - product manufacturer: | Arista, Irland, 2 Georges Dock, Dublin, 1, emea-sales@arista.com |
| GPSR - EU responsible person: | Arista, Irland, 2 Georges Dock, Dublin, 1, emea-sales@arista.com |
| EU Data-Act-Url: | https://www.arista.com/en/support/toi/tag/compliance |
