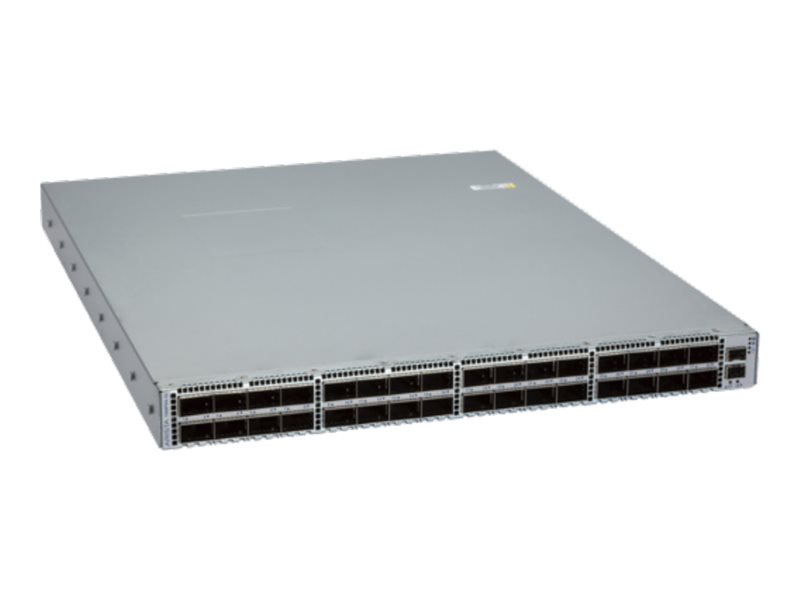

Arista DCS-7060PX4-32
Arista 7060X4, 32x400GbE OSFP switch
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Arista 7060X4, 32x400GbE OSFP switch
| Authentication Method: | RADIUS, TACACS+ |
|---|---|
| Capacity: | Packet buffer size: 64 MB ¦ Virtual interfaces (VLANs): 4096 ¦ STP instances: 62 ¦ IGMP groups: 8000 ¦ ACL: 2700 ¦ MAC addresses: 8000 ¦ Host IPv4 routes: 16000 ¦ IPv4 groups (Multicast): 8000 ¦ IPv4 longest prefix match (LPM) routes: 640000 ¦ IPv6 longes |
| Compliant Standards: | FCC Class A certified, VCCI, BSMI, ICES-003, EN 61000-3-3, KCC, NRTL, RCM, RoHS 2011/65/EU, WEEE 2012/19/EU, EMC 2014/30/EU, LVD 2014/35/EU, EN 300 386, EN 62368-1, IEC 62368-1, IEEE 1588, EN 55032, EN 55035, RFC2460, RoHS 2015/863/EU, IEC 61000-3-2:2019,, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ba, IEEE 802.1Qaz, IEEE 802.3bs, IEEE 802.3cm |
| Depth: | 67 cm |
| Device Type: | Switch - 32 ports - L3 - Managed |
| Enclosure Type: | Rack-mountable 1U |
| Features: | Load balancing, IGMP snooping, port mirroring, sFlow, DCBX support, DHCP snooping, ACL support, QoS, ECMP, DHCP relay, CoS, DSCP support, Storm Control, PFC, MLAG, SDN, AAA, CPP, Enhanced Latency Analyzer and Microburst Detection (LANZ), AEM suite, CloudV |
| Flash Memory: | 8 GB |
| Height: | 4.4 cm |
| Humidity Range Operating: | 5 - 95% |
| Installed Qty: | |
| Interfaces: | 1 x 1000Base-T RJ-45 management ¦ 1 x management (RS-232) RJ-45 ¦ 1 x USB ¦ 32 x 400Gbit LAN OSFP ¦ 2 x LAN SFP+ |
| Jumbo Frame Support: | 9216 bytes |
| MAC Address Table Size: | 16K entries |
| Manufacturer: | Arista |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 70 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| OS Required: | Arista EOS |
| Performance: | Throughput: 25.6 Tbps ¦ Latency: 700 µs |
| Ports: | 32 x 400 Gigabit OSFP + 2 x SFP+ |
| Power Consumption Operational: | 342 Watt |
| Power Device: | Internal power supply - hot-plug |
| Power Redundancy: | Yes |
| Power Redundancy Scheme: | 1+1 |
| RAM: | 8 GB |
| Remote Management Protocol: | Telnet, SSH-2, CLI, IPv4, IPv6, TACACS+, RADIUS, GPB, Syslog |
| Routing Protocol: | OSPF, IS-IS, RIP-2, BGP, IGMPv2, IGMP, VRRP, PIM-SM, IGMPv3, OSPFv3, PIM-SSM, ECMP, policy-based routing (PBR), Bidirectional Forwarding Detection (BFD), Virtual ARP (VARP), VXLAN, VRF, MP-BGP |
| Subtype: | 400 Gigabit Ethernet |
| Version: | original |
| Weight: | 9.5 kg |
| Width: | 48.3 cm |
| GPSR - economic actor: | Arista, Irland, 2 Georges Dock, Dublin, 1, emea-sales@arista.com |
|---|---|
| GPSR - product manufacturer: | Arista, Irland, 2 Georges Dock, Dublin, 1, emea-sales@arista.com |
| GPSR - EU responsible person: | Arista, Irland, 2 Georges Dock, Dublin, 1, emea-sales@arista.com |
| EU Data-Act-Url: | https://www.arista.com/en/support/toi/tag/compliance |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
