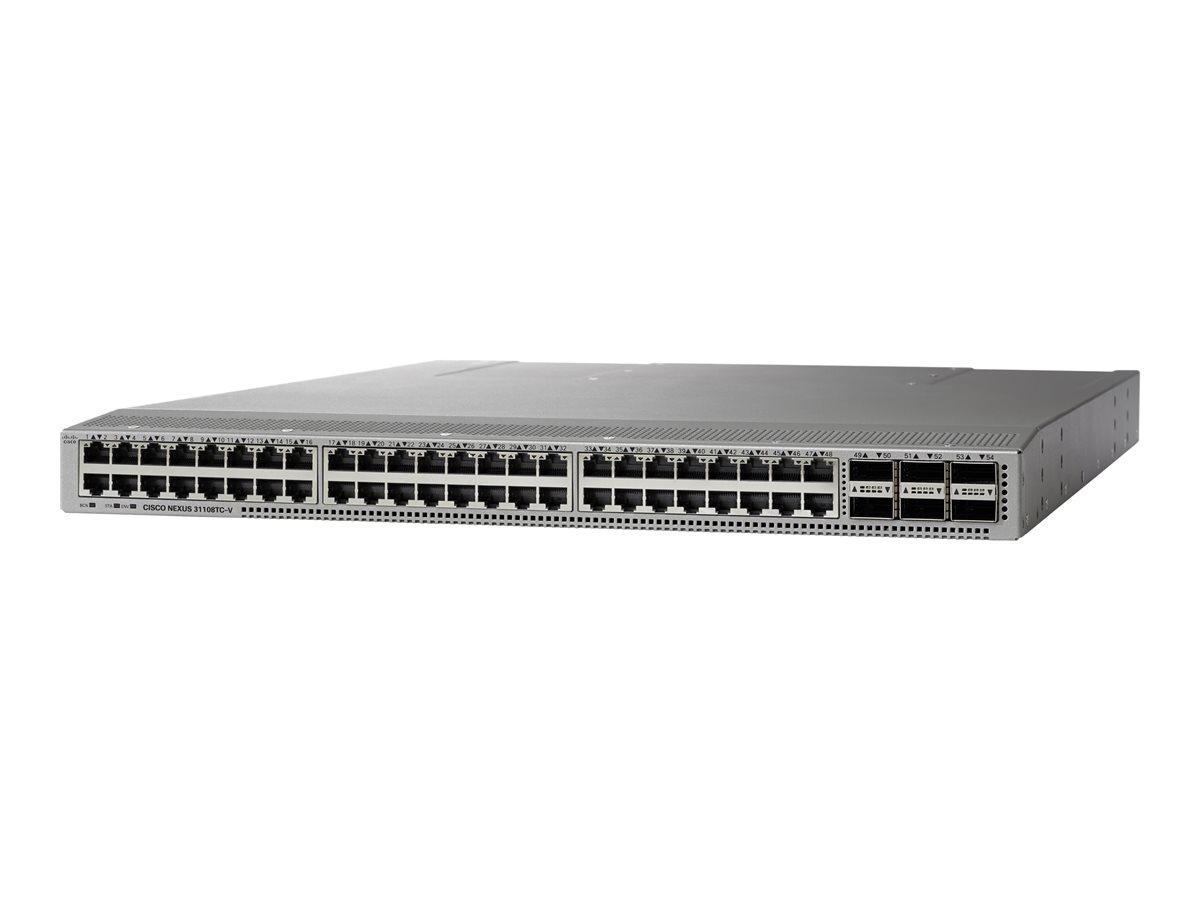

Cisco N3K-C31108TC-V
Nexus 31108-VXLAN, 48 x 10GT and 6C/6Q QSFP ports
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Nexus 31108-VXLAN, 48 x 10GT and 6C/6Q QSFP ports
| Authentication Method: | RADIUS, TACACS+, MS-CHAP, Secure Shell v.2 (SSH2) |
|---|---|
| Capacity: | Virtual interfaces (VLANs): 4096 ¦ Multiple Spanning Tree Protocol instances: 64 ¦ Rapid Spanning Tree Protocol instances: 512 ¦ ACL entries (ingress): 16000 ¦ ACL entries (egress): 1000 |
| Compliant Standards: | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, GB 4943, Directive 2004/108/EC, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IE, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3ba, IEEE 1588-2008 |
| Depth: | 50.5 cm |
| Device Type: | Switch - 48 ports - L3 - Managed |
| Enclosure Type: | Front to back airflow rack-mountable 1U |
| Encryption Algorithm: | AES |
| Features: | DHCP support, BOOTP support, trunking, VLAN support, Syslog support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) suppo |
| Flash Memory: | 16 GB |
| Height: | 4.4 cm |
| Humidity Range Operating: | 10 - 85% (non-condensing) |
| Humidity Range Storage: | 5 - 95% (non-condensing) |
| Installed Qty: | 2 |
| Interfaces: | 48 x 10GBase-T RJ-45 ¦ 1 x 1000Base-T RJ-45 management ¦ 6 x QSFP+ ¦ 1 x serial (RS-232) ¦ 1 x USB |
| Jumbo Frame Support: | 9216 bytes |
| MAC Address Table Size: | 288K entries |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 70 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Switching capacity: 2.8 Tbps ¦ Forwarding performance: 1.4 Bpps ¦ Latency: 650 ns |
| Ports: | 48 x 10 Gigabit Ethernet + 6 x QSFP+ |
| Power Device: | Internal power supply - hot-plug |
| Power Redundancy: | Yes |
| Power Redundancy Scheme: | 1+1 |
| Remote Management Protocol: | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI |
| Routing Protocol: | OSPF, RIP-2, IGMPv2, HSRP, VRRP, OSPFv2, PIM-SM, IGMPv3, MSDP, ECMP, CIDR |
| Software Included: | Cisco NX-OS Layer 3 Base Services |
| Subtype: | 10 Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 10 kg |
| Width: | 43.9 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| EU Data-Act-Url: | https://www.cisco.com/site/de/de/about/sitemap.html |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
Nexus 31108-VXLAN, 48 x 10GT and 6C/6Q QSFP ports
| Authentication Method: | RADIUS, TACACS+, MS-CHAP, Secure Shell v.2 (SSH2) |
|---|---|
| Capacity: | Virtual interfaces (VLANs): 4096 ¦ Multiple Spanning Tree Protocol instances: 64 ¦ Rapid Spanning Tree Protocol instances: 512 ¦ ACL entries (ingress): 16000 ¦ ACL entries (egress): 1000 |
| Compliant Standards: | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, GB 4943, Directive 2004/108/EC, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IE, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3ba, IEEE 1588-2008 |
| Depth: | 50.5 cm |
| Device Type: | Switch - 48 ports - L3 - Managed |
| Enclosure Type: | Front to back airflow rack-mountable 1U |
| Encryption Algorithm: | AES |
| Features: | DHCP support, BOOTP support, trunking, VLAN support, Syslog support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) suppo |
| Flash Memory: | 16 GB |
| Height: | 4.4 cm |
| Humidity Range Operating: | 10 - 85% (non-condensing) |
| Humidity Range Storage: | 5 - 95% (non-condensing) |
| Installed Qty: | 2 |
| Interfaces: | 48 x 10GBase-T RJ-45 ¦ 1 x 1000Base-T RJ-45 management ¦ 6 x QSFP+ ¦ 1 x serial (RS-232) ¦ 1 x USB |
| Jumbo Frame Support: | 9216 bytes |
| MAC Address Table Size: | 288K entries |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 70 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Switching capacity: 2.8 Tbps ¦ Forwarding performance: 1.4 Bpps ¦ Latency: 650 ns |
| Ports: | 48 x 10 Gigabit Ethernet + 6 x QSFP+ |
| Power Device: | Internal power supply - hot-plug |
| Power Redundancy: | Yes |
| Power Redundancy Scheme: | 1+1 |
| Remote Management Protocol: | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI |
| Routing Protocol: | OSPF, RIP-2, IGMPv2, HSRP, VRRP, OSPFv2, PIM-SM, IGMPv3, MSDP, ECMP, CIDR |
| Software Included: | Cisco NX-OS Layer 3 Base Services |
| Subtype: | 10 Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 10 kg |
| Width: | 43.9 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| EU Data-Act-Url: | https://www.cisco.com/site/de/de/about/sitemap.html |
