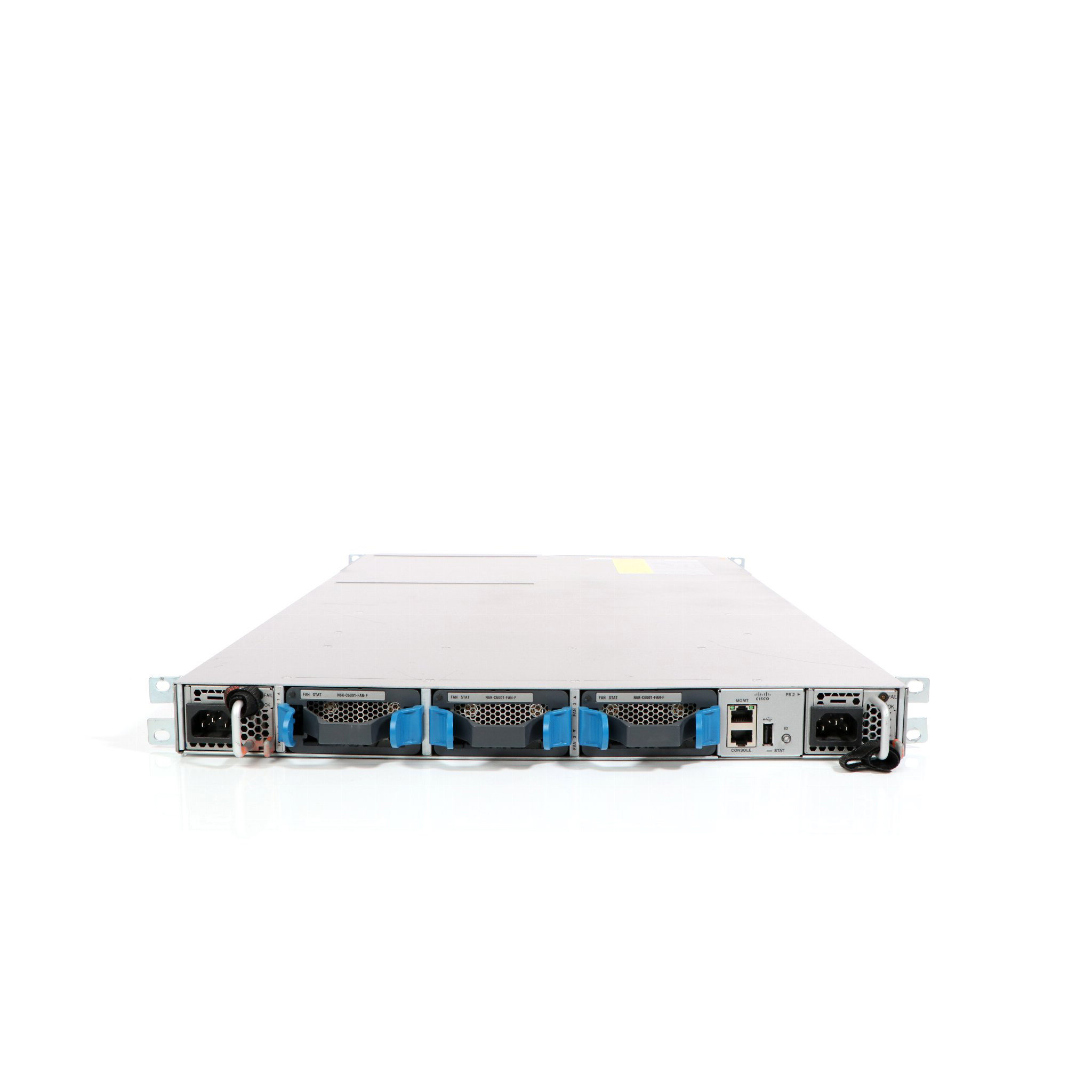

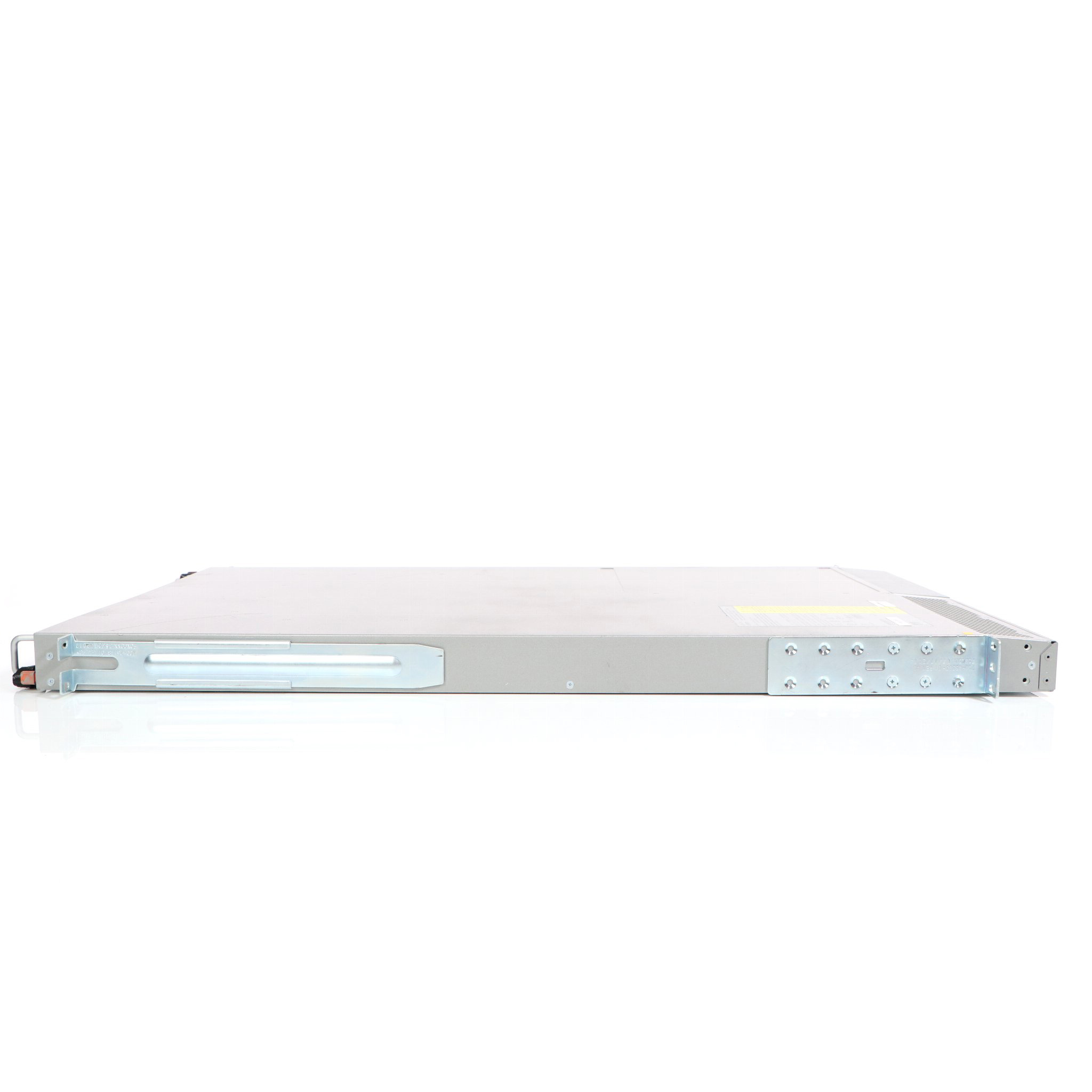

Cisco N5K-C5624Q
Nexus 5624Q VXLAN 1RU Chassis, 12x40G QSFP
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Nexus 5624Q VXLAN 1RU Chassis, 12x40G QSFP
| Capacity: | ARP entries: 256000 ¦ Virtual interfaces (VLANs): 4096 ¦ ACL entries: 4000 ¦ Multiple Spanning Tree Protocol instances: 64 ¦ Host table entries (IPv4): 32000 ¦ Host table entries (IPv6): 8000 ¦ Multicast entries (IPv4): 8000 ¦ IGMP snooping entries: 8000 |
|---|---|
| Compliant Standards: | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, EMC, ICES-003 Class A, AES, FCC CFR47 Part 15, UL 60950-1 Second Edition, RoHS, GB 4943, Directive 2004/108/EC, EN 60950-1 Second Edition, IEC 60950-1 Second, IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1Qbb, IEEE 802.1Qaz |
| Depth: | 76.2 cm |
| Device Type: | Switch - 12 ports - L3 - Managed |
| Enclosure Type: | Rack-mountable 1U |
| Features: | Routing, Layer 3 switching, DHCP support, VPN support, ARP support, VLAN support, Syslog support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tr |
| Height: | 4.4 cm |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Installed Modules Qty (Max): | 0 (installed) / 1 (max) |
| Installed Size: | 2 |
| Interfaces: | 12 x 40Gbit LAN QSFP+ |
| Jumbo Frame Support: | 9216 bytes |
| MAC Address Table Size: | 256K entries |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 70 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Bandwidth: 1.92 Tbps |
| Ports: | 12 x 40 Gigabit Ethernet / FCoE QSFP+ |
| Power Device: | Internal power supply - hot-plug |
| Power Provided: | 1100 Watt |
| Power Redundancy: | Yes |
| Power Redundancy Scheme: | N+1 |
| Remote Management Protocol: | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI |
| Routing Protocol: | IS-IS, RIP-2, BGP, EIGRP, HSRP, IGMP, VRRP, OSPFv2, PIM-SM, EIGRP for IPv6, OSPF for IPv6, static IPv4 routing, static IPv6 routing, ECMP, policy-based routing (PBR), Bidirectional Forwarding Detection (BFD), BGP for IPv6 |
| Subtype: | 40 Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Width: | 43.9 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| EU Data-Act-Url: | https://www.cisco.com/site/de/de/about/sitemap.html |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
Nexus 5624Q VXLAN 1RU Chassis, 12x40G QSFP
| Capacity: | ARP entries: 256000 ¦ Virtual interfaces (VLANs): 4096 ¦ ACL entries: 4000 ¦ Multiple Spanning Tree Protocol instances: 64 ¦ Host table entries (IPv4): 32000 ¦ Host table entries (IPv6): 8000 ¦ Multicast entries (IPv4): 8000 ¦ IGMP snooping entries: 8000 |
|---|---|
| Compliant Standards: | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, EMC, ICES-003 Class A, AES, FCC CFR47 Part 15, UL 60950-1 Second Edition, RoHS, GB 4943, Directive 2004/108/EC, EN 60950-1 Second Edition, IEC 60950-1 Second, IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1Qbb, IEEE 802.1Qaz |
| Depth: | 76.2 cm |
| Device Type: | Switch - 12 ports - L3 - Managed |
| Enclosure Type: | Rack-mountable 1U |
| Features: | Routing, Layer 3 switching, DHCP support, VPN support, ARP support, VLAN support, Syslog support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tr |
| Height: | 4.4 cm |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Installed Modules Qty (Max): | 0 (installed) / 1 (max) |
| Installed Size: | 2 |
| Interfaces: | 12 x 40Gbit LAN QSFP+ |
| Jumbo Frame Support: | 9216 bytes |
| MAC Address Table Size: | 256K entries |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 70 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Bandwidth: 1.92 Tbps |
| Ports: | 12 x 40 Gigabit Ethernet / FCoE QSFP+ |
| Power Device: | Internal power supply - hot-plug |
| Power Provided: | 1100 Watt |
| Power Redundancy: | Yes |
| Power Redundancy Scheme: | N+1 |
| Remote Management Protocol: | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI |
| Routing Protocol: | IS-IS, RIP-2, BGP, EIGRP, HSRP, IGMP, VRRP, OSPFv2, PIM-SM, EIGRP for IPv6, OSPF for IPv6, static IPv4 routing, static IPv6 routing, ECMP, policy-based routing (PBR), Bidirectional Forwarding Detection (BFD), BGP for IPv6 |
| Subtype: | 40 Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Width: | 43.9 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| EU Data-Act-Url: | https://www.cisco.com/site/de/de/about/sitemap.html |
