Cisco WS-C2960X-24TS-L
Catalyst 2960-X 24 GigE, 4 x 1G SFP, LAN Base
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Catalyst 2960-X 24 GigE, 4 x 1G SFP, LAN Base
| Authentication Method: | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
|---|---|
| Capacity: | Virtual interfaces (VLANs): 1023 |
| Compliant Standards: | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2 |
| Depth: | 27.9 cm |
| Device Type: | Switch - 24 ports - Managed - stackable |
| Enclosure Type: | Desktop, rack-mountable 1U |

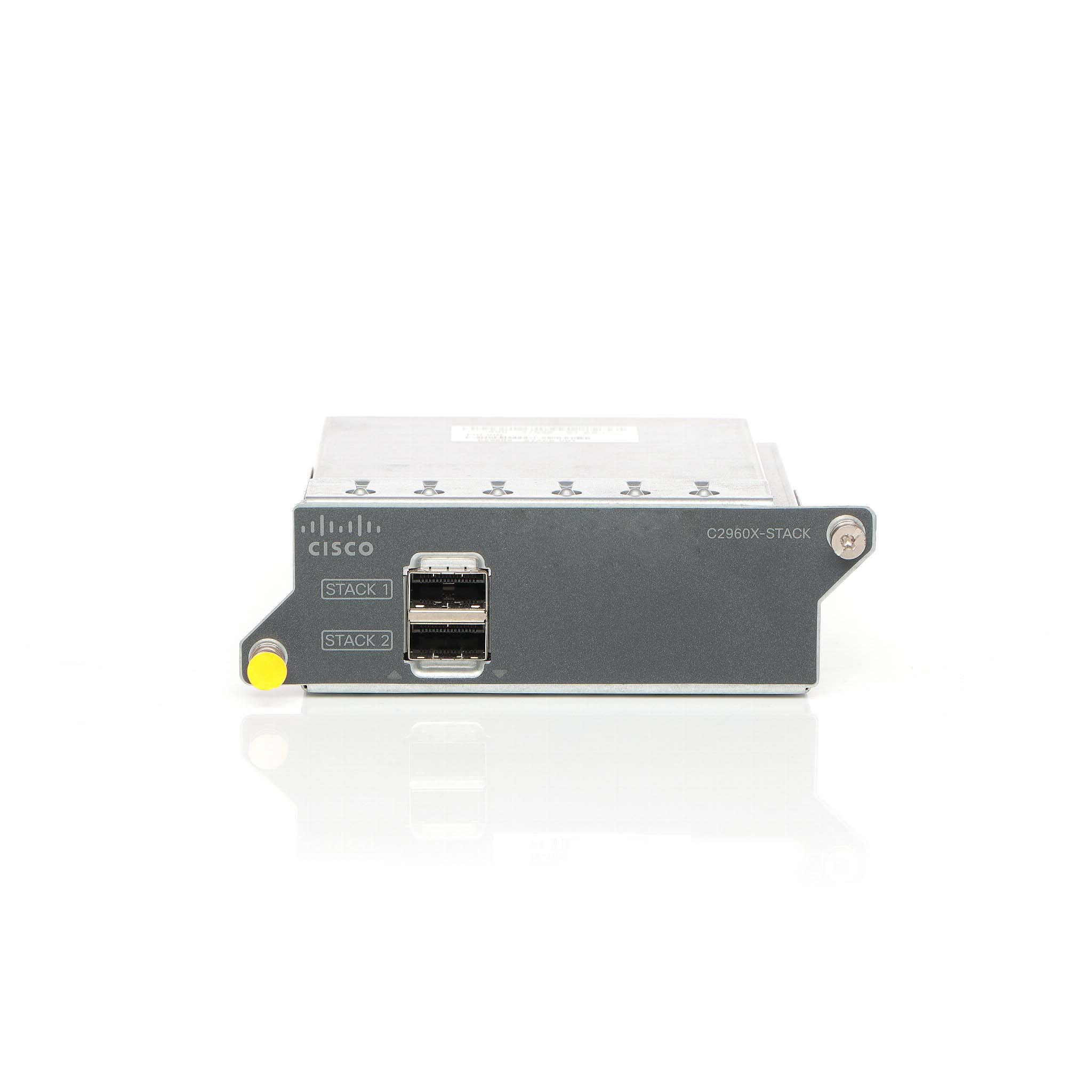

| Expansion Slots: | 1 (total) / 1 (free) x Stacking Module |
| Features: | Layer 2 switching, DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Dynamic Trunking Protocol (DTP |
| Features: | Redundant Power System (RPS) connector |
| Flash Memory: | 128 MB |
| Height: | 4.5 cm |
| Humidity Range Operating: | 10 - 95% (non-condensing) |
| Humidity Range Storage: | 10 - 95% (non-condensing) |
| Interfaces: | 24 x 1000Base-T 10Base-T/100Base-TX/1000Base-T - RJ-45 - RJ-45 ¦ 1 x console console - RJ-45 - RJ-45 ¦ 1 x mini-USB console - mini-USB Type B - Type B management ¦ 1 x USB Type A ¦ 1 x 1000Base-TX 10Base-T/100Base-TX - RJ-45 - RJ-45 management ¦ 4 x SFP ( |
| Jumbo Frame Support: | 9216 bytes |
| MTBF: | 564,910 hours |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 45 °C |
| Max Storage Temperature: | 70 °C |
| Max Units In A Stack: | 8 |
| Min Operating Temperature: | -5 °C |
| Min Storage Temperature: | -25 °C |
| Performance: | Switching capacity: 216 Gbps ¦ Forwarding performance (64-byte packet size): 71.4 Mpps |
| Ports: | 24 x 10/100/1000 + 4 x Gigabit SFP |
| Power Device: | Internal power supply |
| Power Redundancy: | Optional |
| Processor: | APM86392: 600 MHz |
| RAM: | 512 MB |
| Remote Management Protocol: | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI |
| Software Included: | Cisco IOS LAN Base |
| Status Indicators: | Port transmission speed, port duplex mode, system, status, link/activity |
| Subtype: | Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 4 kg |
| Width: | 44.5 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
