| Authentication Method: | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
|---|---|
| Capacity: | Virtual interfaces (VLANs): 1023 |
| Compliant Standards: | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, |
| Depth: | 40.8 cm |

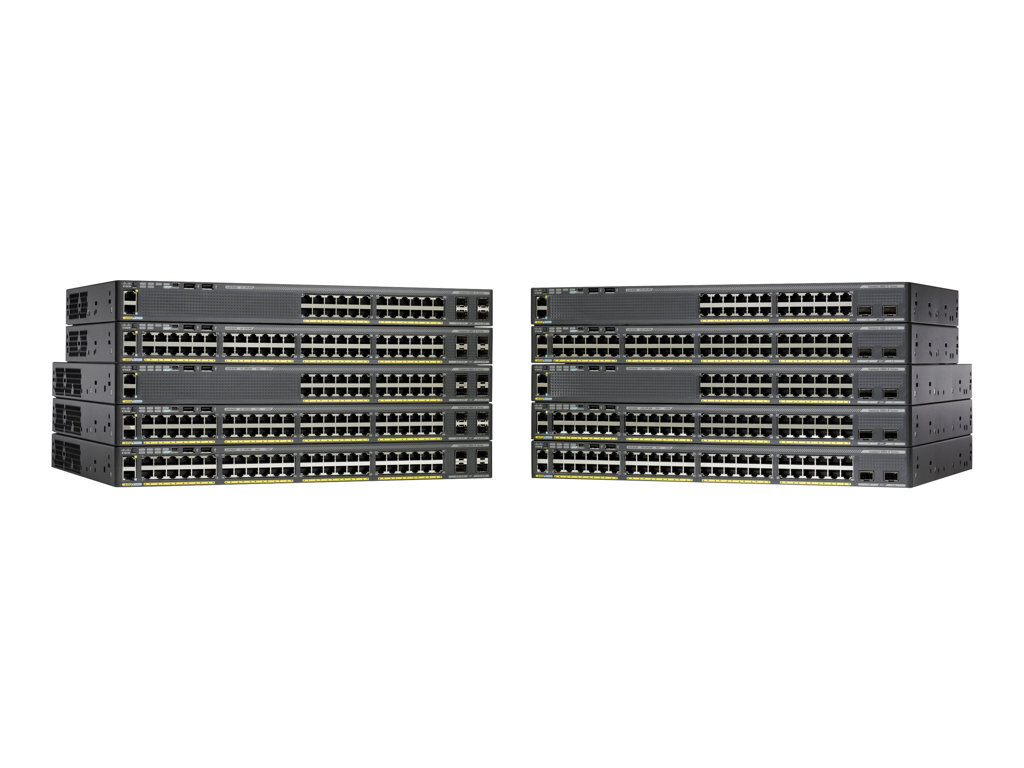

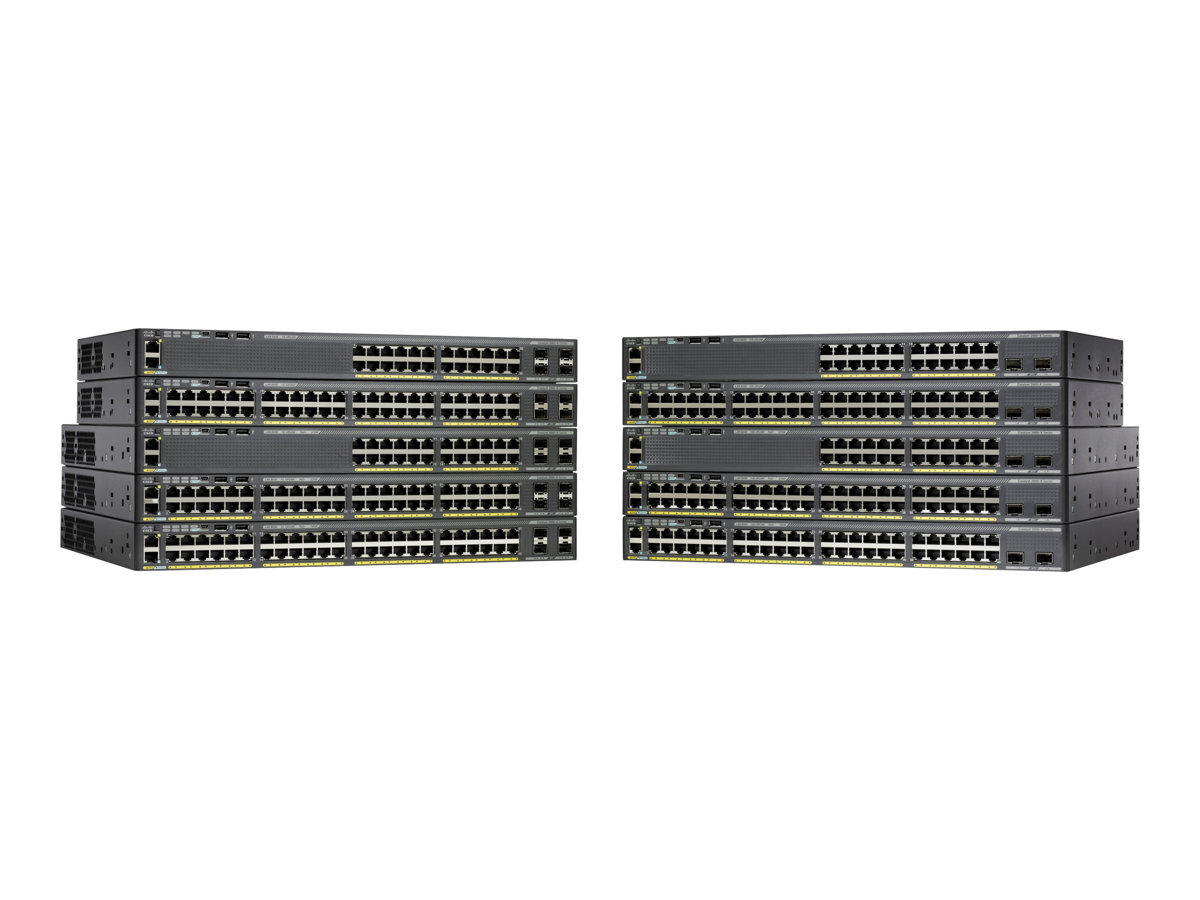

| Device Type: | Switch - 48 ports - L3 - Managed - stackable |
| Enclosure Type: | Desktop, rack-mountable 1U |
| Expansion Slots: | 1 (total) / 1 (free) x Stacking Module |
| Features: | Redundant Power System (RPS) connector |
| Features: | Layer 2 switching, power over Ethernet (PoE), auto-negotiation, ARP support, Cisco Fast EtherChannel, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Intrusion Detection System (IDS), Broadcast Storm Control, IPv6 support, Multicast Storm Contr |
| Flash Memory: | 128 MB |
| Height: | 4.45 cm |
| Humidity Range Operating: | 10 - 95% (non-condensing) |
| Humidity Range Storage: | 10 - 95% (non-condensing) |
| Installed Qty: | 1 |
| Interfaces: | 48 x 1000Base-T 10Base-T/100Base-TX/1000Base-T - RJ-45 - RJ-45 12 ports (PoE+) / 48 ports (PoE) - 30 W ¦ 1 x console SFP+ - RJ-45 ¦ 1 x mini-USB Type B management ¦ 2 x USB Type A ¦ 1 x 1000Base-TX RJ-45 management ¦ 2 x SFP+ uplink |
| Jumbo Frame Support: | 9216 bytes |
| MTBF: | 275,430 hours |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 45 °C |
| Max Storage Temperature: | 70 °C |
| Max Supported Qty: | 2 |
| Max Units In A Stack: | 8 |
| Min Operating Temperature: | -5 °C |
| Min Storage Temperature: | -25 °C |
| Performance: | Switching capacity: 216 Gbps ¦ Forwarding performance: 130.9 Mpps |
| PoE Budget: | 370 W |
| Ports: | 48 x 10/100/1000 (PoE+) + 2 x SFP+ |
| Power Device: | Internal power supply |
| Power Over Ethernet (PoE): | PoE+ |
| Power Provided: | 640 Watt |
| Power Redundancy: | Optional |
| Power Redundancy Scheme: | 1+1 (with optional power supply) |
| Processor: | : 600 MHz |
| RAM: | 512 MB |
| Remote Management Protocol: | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI |
| Routing Protocol: | OSPF, RIP-1, RIP-2, HSRP, VRRP, PIM-SM, PIM-DM, PIM-SSM, policy-based routing (PBR), RIPng |
| Software Included: | Cisco IOS IP Lite |
| Status Indicators: | Port status, port transmission speed, port duplex mode, system, RPS (Redundant Power Supply), PoE, link/activity |
| Subtype: | Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 6.4 kg |
| Width: | 44.5 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| EU Data-Act-Url: | https://www.cisco.com/site/de/de/about/sitemap.html |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
