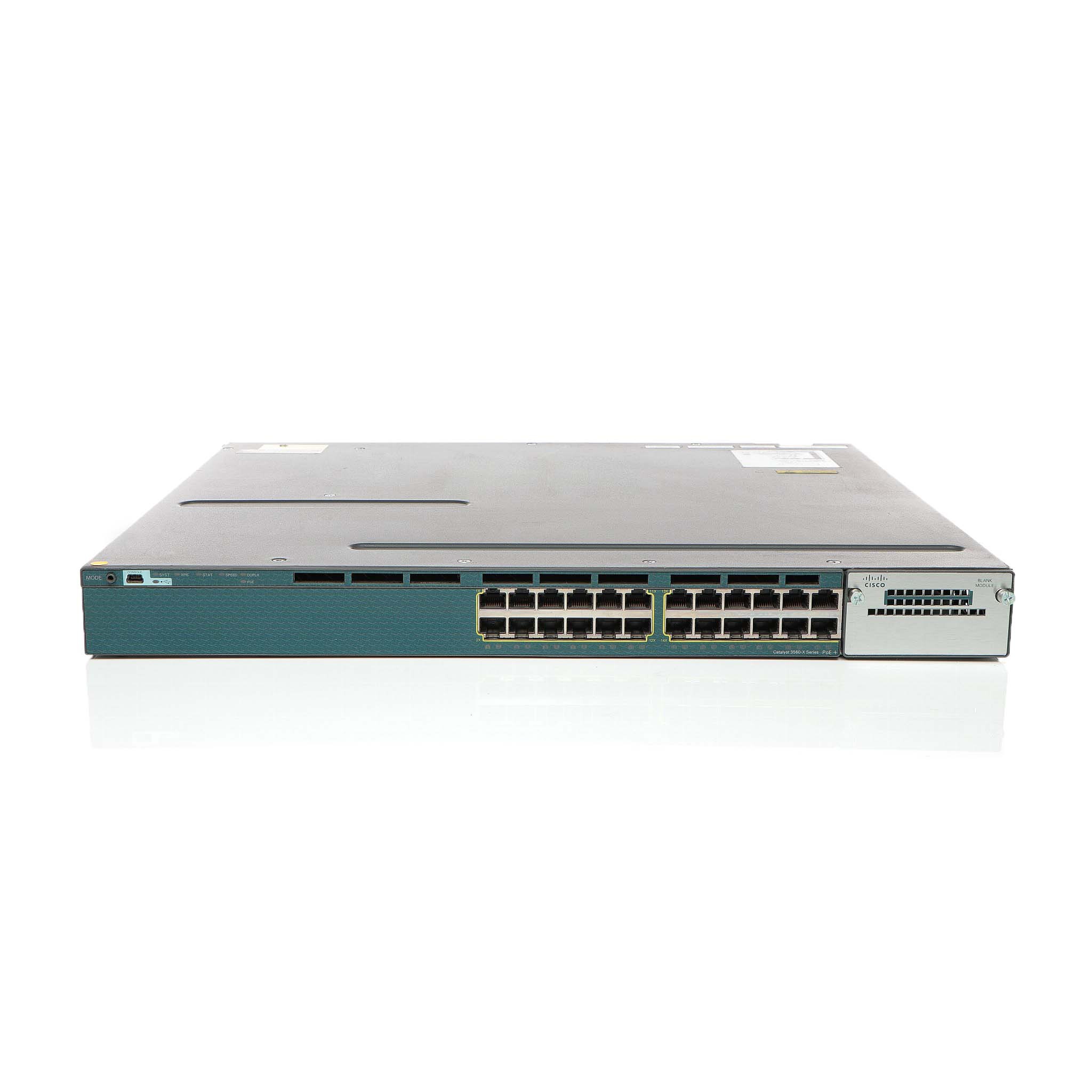

Cisco WS-C3560X-24P-L
Catalyst 3560X 24 Port PoE LAN Base
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Catalyst 3560X 24 Port PoE LAN Base
| Authentication Method: | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
|---|---|
| Capacity: | Virtual interfaces (VLANs): 255 |
| Compliant Standards: | TUV GS, CISPR 22 Class A, GOST, cUL, NOM, VCCI Class A ITE, EN55022 Class A, CB, AS/NZS 60950-1, AS/NZ 3548 Class A, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, FCC Part 15 A, CSA C22.2 No. 60950-1 |
| Depth: | 46 cm |
| Device Type: | Switch - 24 ports - Managed |
| Enclosure Type: | Rack-mountable 1U |
| Expansion Slots: | 1 (total) / 1 (free) x Expansion Slot |
| Features: | Redundant Power System (RPS) connector |
| Features: | Hot swap module replacement, Layer 2 switching, dynamic IP address assignment, DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Br |
| Flash Memory: | 128 MB Flash |
| Height: | 4.5 cm |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Installed Qty: | 1 |
| Interfaces: | 24 x 10Base-T/100Base-TX/1000Base-T - RJ-45 PoE ¦ 1 x USB Type A ¦ 1 x console - mini-USB Type B management ¦ 1 x RS-232 - RJ-45 management ¦ 1 x 10Base-T/100Base-TX - RJ-45 management |
| Jumbo Frame Support: | 9216 bytes |
| MTBF: | 181,370 hours |
| Manufacturer: | Cisco Meraki |
| Max Storage Temperature: | 70 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | -5 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Switching fabric bandwidth: 160 Gbps |
| Ports: | 24 x 10/100/1000 (PoE) |
| Power Device: | Internal power supply |
| Power Over Ethernet (PoE): | PoE |
| Power Redundancy: | Optional |
| Power Redundancy Scheme: | 1+1 (with optional power supply) |
| RAM: | 256 MB |
| Rack Mounting Kit: | Optional |
| Remote Management Protocol: | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI |
| Software Included: | Cisco IOS LAN Base |
| Status Indicators: | Port status, port transmission speed, port duplex mode, power, system, link/activity |
| Subtype: | Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 7.1 kg |
| Width: | 44.5 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
Catalyst 3560X 24 Port PoE LAN Base
| Authentication Method: | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
|---|---|
| Capacity: | Virtual interfaces (VLANs): 255 |
| Compliant Standards: | TUV GS, CISPR 22 Class A, GOST, cUL, NOM, VCCI Class A ITE, EN55022 Class A, CB, AS/NZS 60950-1, AS/NZ 3548 Class A, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, FCC Part 15 A, CSA C22.2 No. 60950-1 |
| Depth: | 46 cm |
| Device Type: | Switch - 24 ports - Managed |
| Enclosure Type: | Rack-mountable 1U |
| Expansion Slots: | 1 (total) / 1 (free) x Expansion Slot |
| Features: | Redundant Power System (RPS) connector |
| Features: | Hot swap module replacement, Layer 2 switching, dynamic IP address assignment, DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Br |
| Flash Memory: | 128 MB Flash |
| Height: | 4.5 cm |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Installed Qty: | 1 |
| Interfaces: | 24 x 10Base-T/100Base-TX/1000Base-T - RJ-45 PoE ¦ 1 x USB Type A ¦ 1 x console - mini-USB Type B management ¦ 1 x RS-232 - RJ-45 management ¦ 1 x 10Base-T/100Base-TX - RJ-45 management |
| Jumbo Frame Support: | 9216 bytes |
| MTBF: | 181,370 hours |
| Manufacturer: | Cisco Meraki |
| Max Storage Temperature: | 70 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | -5 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Switching fabric bandwidth: 160 Gbps |
| Ports: | 24 x 10/100/1000 (PoE) |
| Power Device: | Internal power supply |
| Power Over Ethernet (PoE): | PoE |
| Power Redundancy: | Optional |
| Power Redundancy Scheme: | 1+1 (with optional power supply) |
| RAM: | 256 MB |
| Rack Mounting Kit: | Optional |
| Remote Management Protocol: | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI |
| Software Included: | Cisco IOS LAN Base |
| Status Indicators: | Port status, port transmission speed, port duplex mode, power, system, link/activity |
| Subtype: | Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 7.1 kg |
| Width: | 44.5 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
