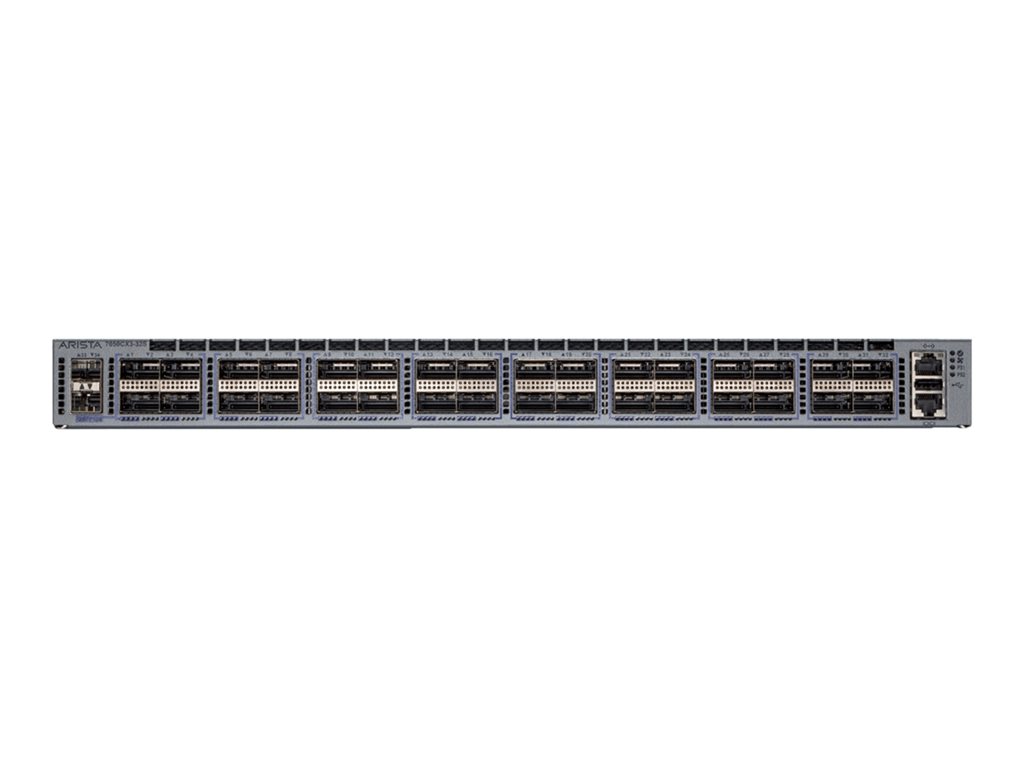

Arista DCS-7050CX3-32S
Arista 7050X3, 32x100GbE QSFP and 2xSFP switch, configurable fans and psu, 2 x C13-C14 cords
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Arista 7050X3, 32x100GbE QSFP and 2xSFP switch, configurable fans and psu, 2 x C13-C14 cords
| Authentication Method: | RADIUS, TACACS+ |
|---|---|
| Capacity: | Virtual interfaces (VLANs): 4096 ¦ ACL entries: 2000 ¦ Ports per MLAG: 64 ¦ Priority queues per port: 8 ¦ MST instances: 64 ¦ RPVST+ instances: 510 ¦ IGMP groups: 288000 ¦ ACL entries (egress): 2000 ¦ ECMP groups: 1000 |
| Compliant Standards: | IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 1588-2008, IEEE 802.3by, VCCI, C-Tick, BSMI, EN 61000-3-2, EN 61000-3-3, EN55024, CB, CCC, EMC, FCC, UL 60950-1, IEC 60950-1, KC, NRTL, EAC, RoHS 2011/65/EU, EMC 2004/108/EC, LVD 2006/95/EC, WEEE 2012/19/EU, EN 300 386, EN 62368-1, IEC 62368-1, EN 55032, EN 55035, CSA 60950-1 |
| Depth: | 40.64 cm |
| Device Type: | Switch - 34 ports - L3 - Managed |
| Enclosure Type: | Rack-mountable 1U |
| Features: | Flow control, uplink, Layer 3 switching, NAT support, ARP support, VLAN support, IGMP snooping, Syslog support, traffic shaping, port mirroring, MAC address filtering, IPv6 support, High Availability, sFlow, RSTP support, MSTP support, DCBX support, event |
| Flash Memory: | 8 GB |
| Height: | 4.4 cm |
| Humidity Range Operating: | 5 - 95% |
| Interfaces: | 1 x management (Gigabit LAN) RJ-45 ¦ 1 x management (RS-232) RJ-45 ¦ 2 x 1/10Gbit LAN SFP+ ¦ 32 x 100Gbit LAN QSFP ¦ 1 x USB |
| Jumbo Frame Support: | 9216 bytes |
| MAC Address Table Size: | 288K entries |
| Manufacturer: | Arista |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 70 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Throughput: 6.4 Tbps ¦ Packets per second: 2 Bpps ¦ Latency: 800 ns |
| Ports: | 32 x 100 Gigabit QSFP + 2 x 1 Gigabit / 10 Gigabit SFP+ |
| Power Device: | Internal power supply (not installed) - hot-plug |
| Power Redundancy: | Optional |
| RAM: | 8 GB |
| Remote Management Protocol: | SNMP 1, SNMP 2, RMON 2, RMON, Telnet, SNMP 3, SSH-2, CLI, IPv6 |
| Routing Protocol: | OSPF, IS-IS, RIP-2, BGP, IGMPv2, IGMP, VRRP, PIM-SM, IGMPv3, OSPFv3, PIM-SSM, Multiprotocol BGP, MSDP, ECMP, policy-based routing (PBR), Bidirectional Forwarding Detection (BFD), URPF, Virtual ARP (VARP) |
| Subtype: | 100 Gigabit Ethernet |
| Version: | original |
| Weight: | 9.1 kg |
| Width: | 48.3 cm |
| GPSR - economic actor: | Arista, Irland, 2 Georges Dock, Dublin, 1, emea-sales@arista.com |
|---|---|
| GPSR - product manufacturer: | Arista, Irland, 2 Georges Dock, Dublin, 1, emea-sales@arista.com |
| GPSR - EU responsible person: | Arista, Irland, 2 Georges Dock, Dublin, 1, emea-sales@arista.com |
| EU Data-Act-Url: | https://www.arista.com/en/support/toi/tag/compliance |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
