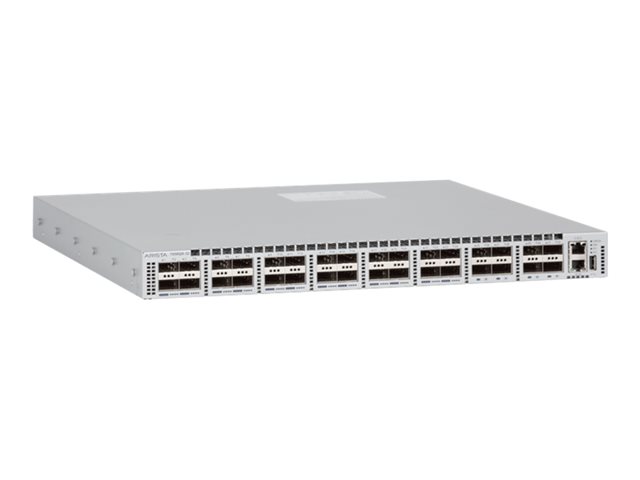

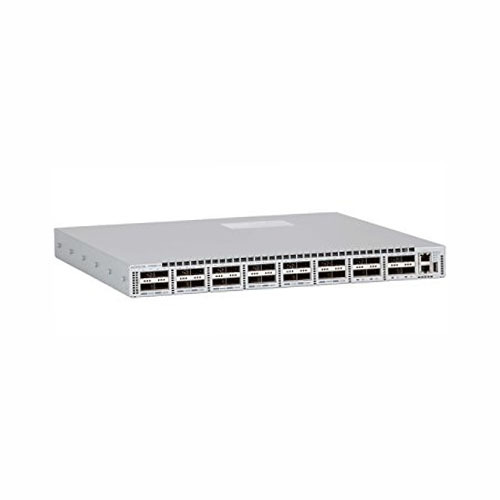

Arista DCS-7050QX-32
Arista 7050, 32xQSFP+ switch, no fans, no psu, 2 x C13-C14 cords
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Arista 7050, 32xQSFP+ switch, no fans, no psu, 2 x C13-C14 cords
| Authentication Method: | RADIUS, TACACS+ |
|---|---|
| Capacity: | Virtual interfaces (VLANs): 4096 ¦ IGMP groups: 288000 ¦ ACL entries: 4000 ¦ IPv4 routes (Multicast): 16000 ¦ IPv4 routes (Unicast): 16000 ¦ IPv6 routes (Unicast): 8000 ¦ IPv6 routes (Multicast): 4000 ¦ IPv4 hosts: 208000 ¦ Host table entries (IPv6): 1040 |
| Compliant Standards: | IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1Qaz, TUV, EN 60950, VCCI Class A ITE, IEC 60950, UL 60950, CSA 22.2 No. 60950, ICES-003 Class A, FCC Part 15 A, RoHS2 |
| Depth: | 40.64 cm |
| Device Type: | Switch - 32 ports - L3 - Managed |
| Enclosure Type: | Rack-mountable 1U |
| Features: | Flow control, Layer 3 switching, Layer 2 switching, NAT support, load balancing, VLAN support, IGMP snooping, Syslog support, port mirroring, MAC address filtering, IPv6 support, sFlow, STP support, RSTP support, DCBX support, event log, DHCP snooping, AC |
| Flash Memory: | 2 GB |
| Height: | 4.4 cm |
| Humidity Range Operating: | 5 - 95% |
| Installed Qty: | |
| Interfaces: | 1 x 1000Base-T RJ-45 management ¦ 1 x management (RS-232) RJ-45 ¦ 1 x USB Type A ¦ 32 x 40Gbit LAN QSFP+ |
| Jumbo Frame Support: | 9216 bytes |
| MAC Address Table Size: | 288K entries |
| Manufacturer: | Arista |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 70 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -25 °C |
| Performance: | Switching capacity: 2.56 Tbps ¦ Packet filter throughput: 1440 Mpps |
| Ports: | 32 x 40 Gigabit QSFP+ |
| Power Consumption Operational: | 332 Watt |
| Power Device: | Internal power supply (not installed) - hot-plug |
| Power Redundancy: | Yes |
| Power Redundancy Scheme: | 1+1 |
| RAM: | 4 GB |
| Remote Management Protocol: | SNMP 1, SNMP 2, RMON 2, RMON, Telnet, SNMP 3, SSH-2, CLI |
| Routing Protocol: | OSPF, IS-IS, RIP-2, BGP, IGMPv2, IGMP, VRRP, PIM-SM, IGMPv3, OSPFv3, PIM-SSM, Multiprotocol BGP, ECMP, policy-based routing (PBR) |
| Subtype: | 40 Gigabit Ethernet |
| Version: | original |
| Weight: | 9.1 kg |
| Width: | 44.5 cm |
| GPSR - economic actor: | Arista, Irland, 2 Georges Dock, Dublin, 1, emea-sales@arista.com |
|---|---|
| GPSR - product manufacturer: | Arista, Irland, 2 Georges Dock, Dublin, 1, emea-sales@arista.com |
| GPSR - EU responsible person: | Arista, Irland, 2 Georges Dock, Dublin, 1, emea-sales@arista.com |
| EU Data-Act-Url: | https://www.arista.com/en/support/toi/tag/compliance |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
Arista 7050, 32xQSFP+ switch, no fans, no psu, 2 x C13-C14 cords
| Authentication Method: | RADIUS, TACACS+ |
|---|---|
| Capacity: | Virtual interfaces (VLANs): 4096 ¦ IGMP groups: 288000 ¦ ACL entries: 4000 ¦ IPv4 routes (Multicast): 16000 ¦ IPv4 routes (Unicast): 16000 ¦ IPv6 routes (Unicast): 8000 ¦ IPv6 routes (Multicast): 4000 ¦ IPv4 hosts: 208000 ¦ Host table entries (IPv6): 1040 |
| Compliant Standards: | IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1Qaz, TUV, EN 60950, VCCI Class A ITE, IEC 60950, UL 60950, CSA 22.2 No. 60950, ICES-003 Class A, FCC Part 15 A, RoHS2 |
| Depth: | 40.64 cm |
| Device Type: | Switch - 32 ports - L3 - Managed |
| Enclosure Type: | Rack-mountable 1U |
| Features: | Flow control, Layer 3 switching, Layer 2 switching, NAT support, load balancing, VLAN support, IGMP snooping, Syslog support, port mirroring, MAC address filtering, IPv6 support, sFlow, STP support, RSTP support, DCBX support, event log, DHCP snooping, AC |
| Flash Memory: | 2 GB |
| Height: | 4.4 cm |
| Humidity Range Operating: | 5 - 95% |
| Installed Qty: | |
| Interfaces: | 1 x 1000Base-T RJ-45 management ¦ 1 x management (RS-232) RJ-45 ¦ 1 x USB Type A ¦ 32 x 40Gbit LAN QSFP+ |
| Jumbo Frame Support: | 9216 bytes |
| MAC Address Table Size: | 288K entries |
| Manufacturer: | Arista |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 70 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -25 °C |
| Performance: | Switching capacity: 2.56 Tbps ¦ Packet filter throughput: 1440 Mpps |
| Ports: | 32 x 40 Gigabit QSFP+ |
| Power Consumption Operational: | 332 Watt |
| Power Device: | Internal power supply (not installed) - hot-plug |
| Power Redundancy: | Yes |
| Power Redundancy Scheme: | 1+1 |
| RAM: | 4 GB |
| Remote Management Protocol: | SNMP 1, SNMP 2, RMON 2, RMON, Telnet, SNMP 3, SSH-2, CLI |
| Routing Protocol: | OSPF, IS-IS, RIP-2, BGP, IGMPv2, IGMP, VRRP, PIM-SM, IGMPv3, OSPFv3, PIM-SSM, Multiprotocol BGP, ECMP, policy-based routing (PBR) |
| Subtype: | 40 Gigabit Ethernet |
| Version: | original |
| Weight: | 9.1 kg |
| Width: | 44.5 cm |
| GPSR - economic actor: | Arista, Irland, 2 Georges Dock, Dublin, 1, emea-sales@arista.com |
|---|---|
| GPSR - product manufacturer: | Arista, Irland, 2 Georges Dock, Dublin, 1, emea-sales@arista.com |
| GPSR - EU responsible person: | Arista, Irland, 2 Georges Dock, Dublin, 1, emea-sales@arista.com |
| EU Data-Act-Url: | https://www.arista.com/en/support/toi/tag/compliance |
