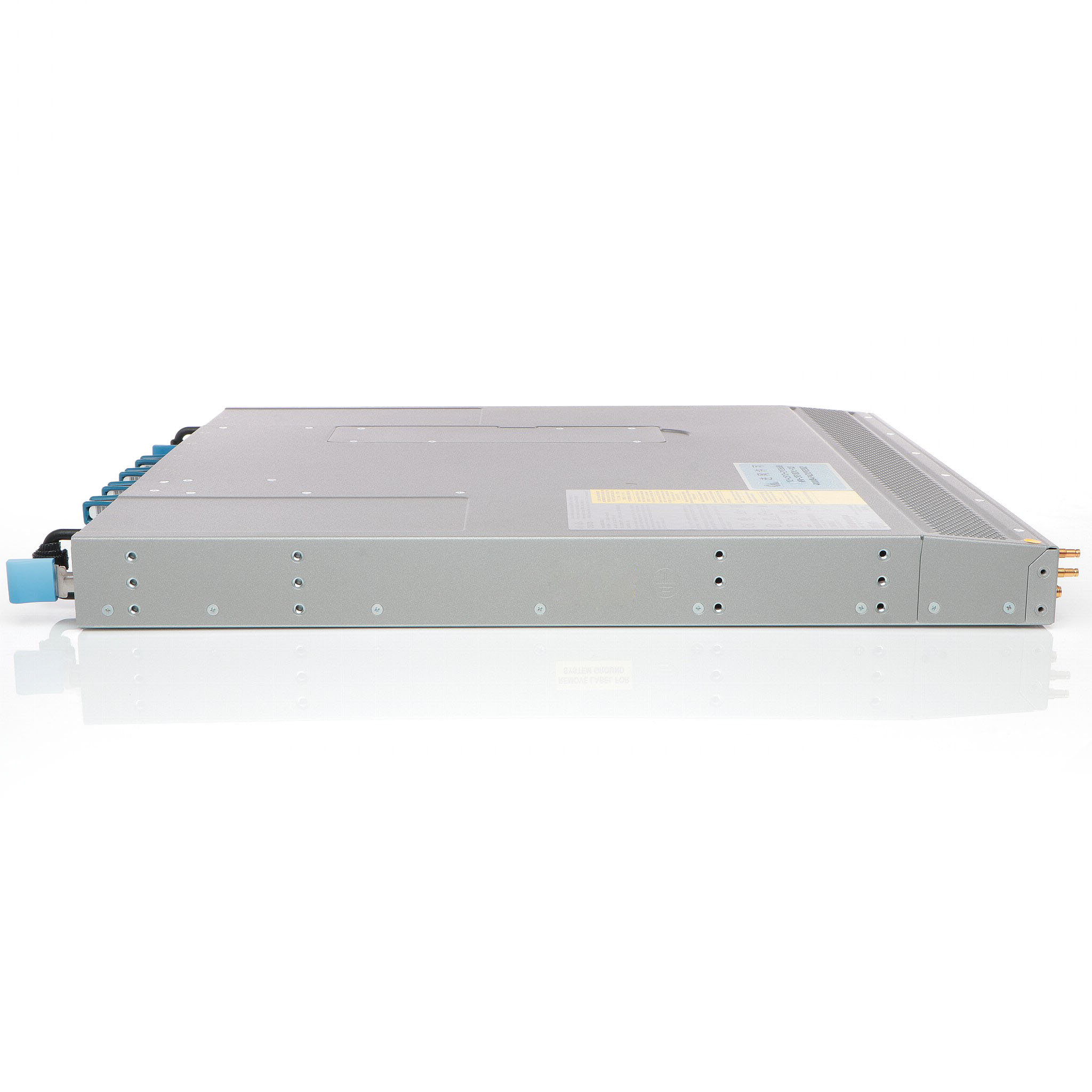

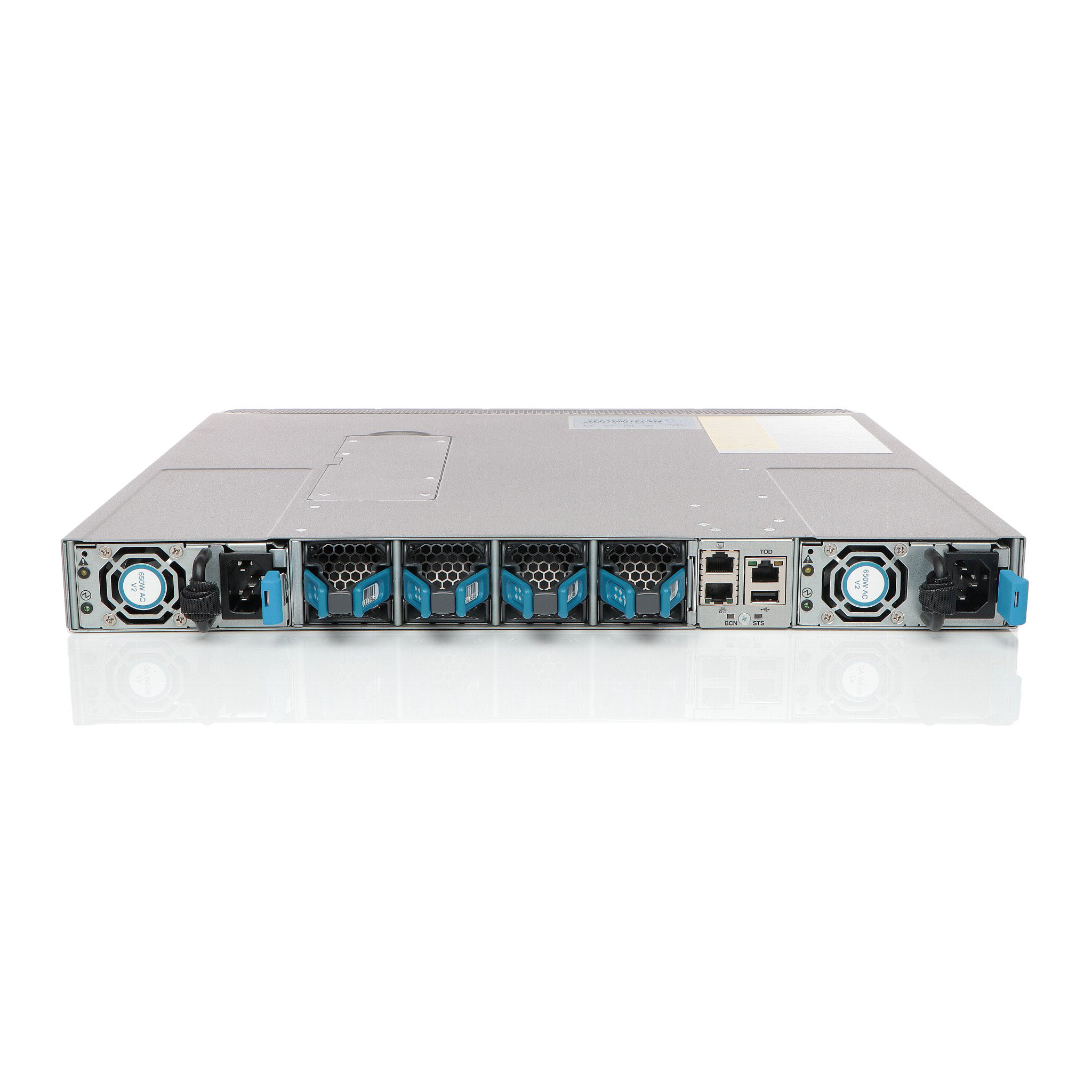

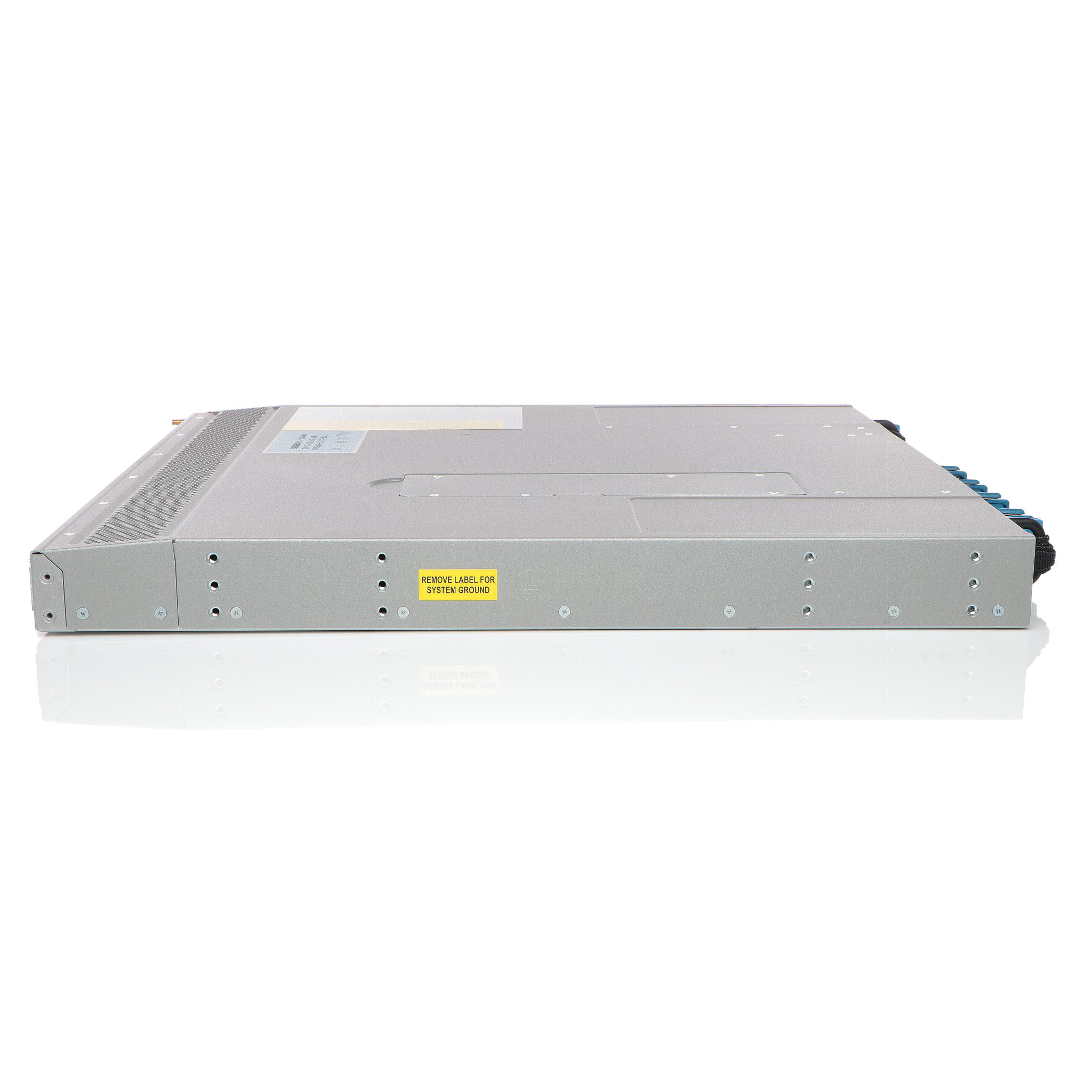

Cisco N9K-C93180YC-FX3
Nexus 9300 48p 1/10/25G, 6p 40/100G, MACsec,SyncE.
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Nexus 9300 48p 1/10/25G, 6p 40/100G, MACsec,SyncE.
| Built-in Devices: | 128 GB SSD |
|---|---|
| Capacity: | Buffer capacity (MB): 40 ¦ Longest prefix match (LPM) routes: 1792000 ¦ IP host entries: 1792000 ¦ Multicast routes: 128000 ¦ IGMP snooping groups (shipping): 8000 ¦ IGMP snooping groups (maximum): 32000 ¦ Fabric extenders per switch: 16 ¦ ACL entries (in |
| Compliant Standards: | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1 Second Edition, RoHS, GB 4943, Directive 2004/108/EC, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, VCCI Class A,, IEEE 802.1ae, ITU-T G.8275.1 |
| Depth: | 49.6 cm |
| Device Type: | Switch - 48 ports - L3 - Managed |
| Enclosure Type: | Rack-mountable |
| Features: | Flow control, NAT support, Data Center Bridging Exchange (DCBX) support, Access Control List (ACL) support, RDMA support, Data Center Bridging (DCB), Virtual PortChannel (vPC) technology, Precision Time Protocol (PTP), 4 fans, VXLAN tunnel endpoints (VTEP |
| Height: | 4.4 cm |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Interfaces: | 48 x 1/10/25GBase-X SFP+ ¦ 6 x 40/100GBase-X QSFP28 ¦ 1 x management RJ-45 ¦ 1 x USB ¦ 1 x ToD RJ-45 ¦ 1 x serial (RS-232) |
| MAC Address Table Size: | 512K entries |
| MTBF: | 288,760 hours |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 70 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Bandwidth: 3.6 Tbps |
| Ports: | 48 x 1/10/25 Gigabit SFP+ + 6 x 40/100 Gigabit QSFP28 |
| Power Consumption Operational: | 375 Watt |
| Power Device: | Internal power supply - hot-plug |
| Power Redundancy: | Optional |
| Power Redundancy Scheme: | N+1 |
| RAM: | 32 GB |
| Remote Management Protocol: | HTTP, HTTPS, CLI, NETCONF, RESTCONF, IPv6, JSON |
| Routing Protocol: | OSPF, RIP-2, BGP, EIGRP, HSRP, PIM-SM, PIM-SSM, MSDP, ECMP, MPLS, RSVP |
| Software Included: | Cisco NX-OS 10.1.1 |
| Subtype: | 25 Gigabit Ethernet |
| Version: | original |
| Weight: | 9.52 kg |
| Width: | 43.9 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| EU Data-Act-Url: | https://www.cisco.com/site/de/de/about/sitemap.html |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
