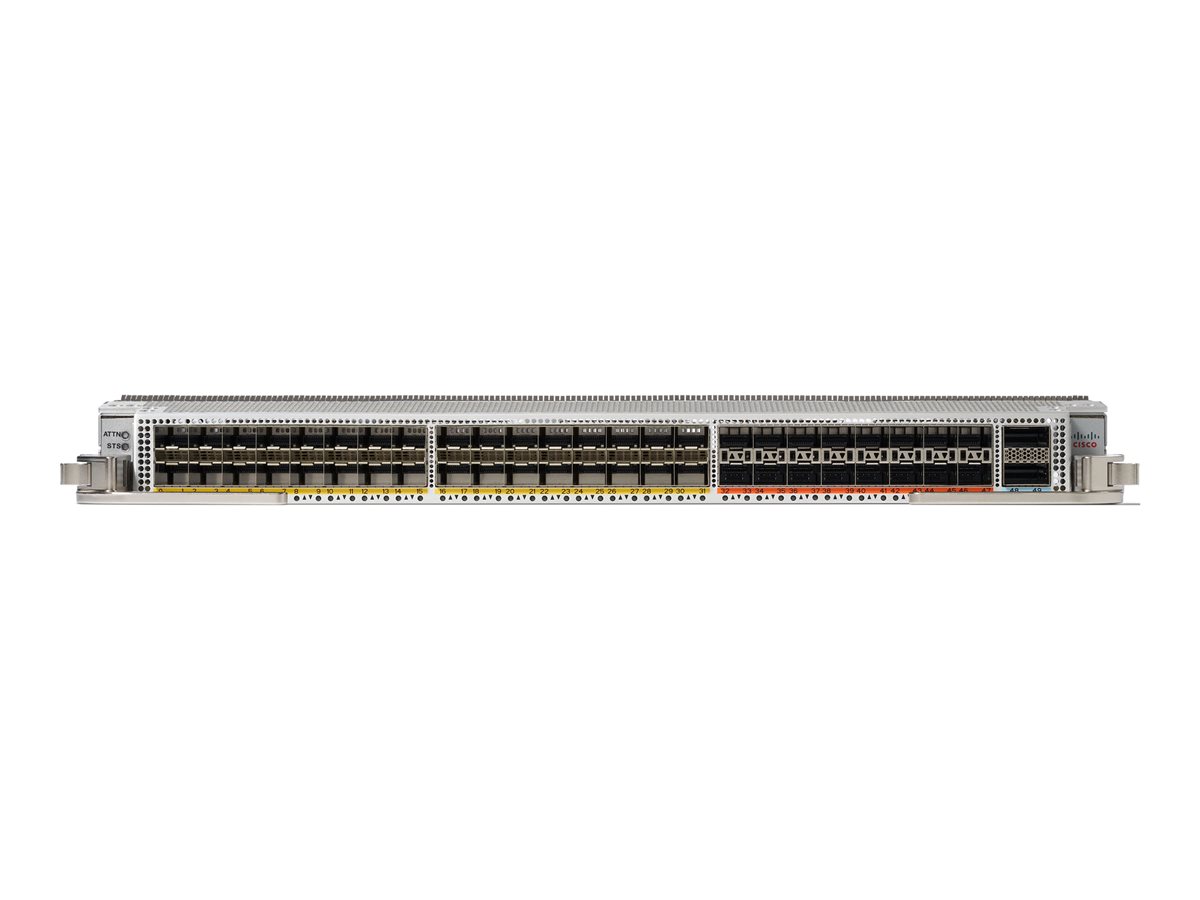

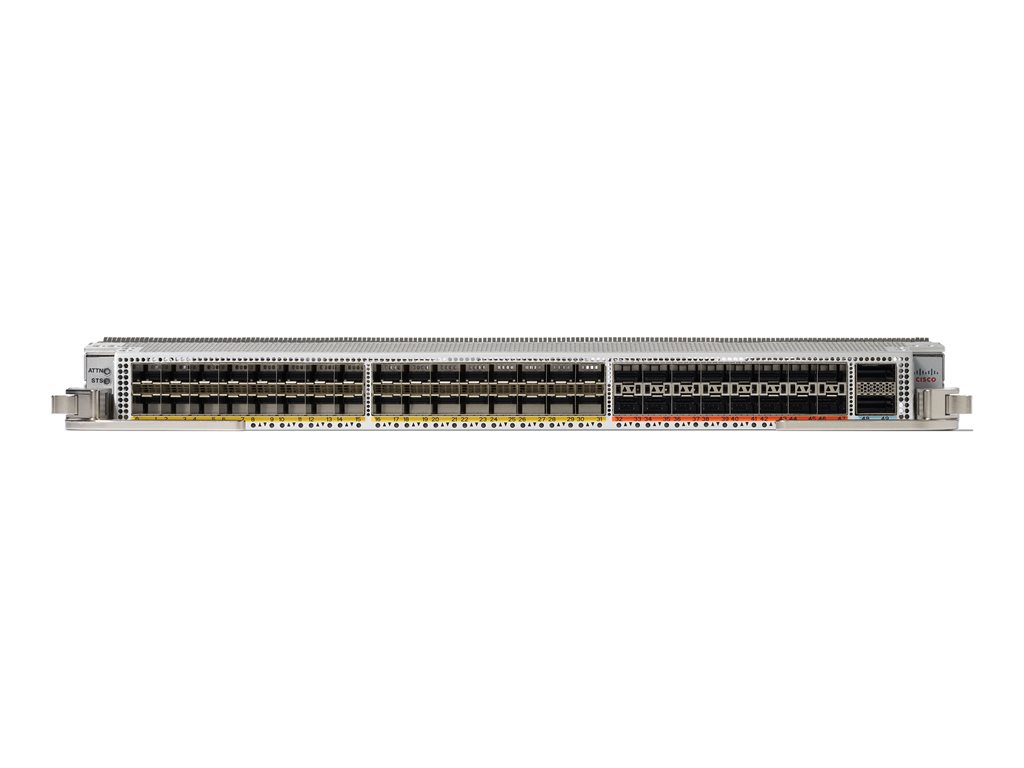

Cisco NC57-48Q2D-BM
NCS 5700 32X25G + 16x50G + 2x400G Base Macsec LC Bundle
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
NCS 5700 32X25G + 16x50G + 2x400G Base Macsec LC Bundle
| Bundled with: | (NC57-48Q2D-S-RTU) NCS 5700 32X1/10/25G + 16x1/10/25/50G + 2x400G Linecard Scale Right To Use License |
|---|---|
| Capacity: | IPv4 routes: 5000000 ¦ IPv6 routes: 2000000 |
| Compliant Standards: | IEEE 1588v1 |
| Compliant Standards: | CAN/CSA C22.2 No. 60950-1 Second Edition, Directive 2004/108/EC, Directive 2006/95/EC, GR-1089-CORE, GR-63-CORE, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, GB 4943, 47 CFR Part 15 Class A, AS/NZS CISP |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 50 Gigabit Ethernet, 100 Gigabit Ethernet, 400 Gigabit Ethernet |
| Depth: | 43.32 cm |
| Designed For: | P/N: NCS-5504, NCS-5504-MBH, NCS-5508, NCS-5508-MBH, NCS-5516, NCS-5516-MBH |
| Device Type: | Expansion module |
| Features: | MACsec support, on-chip TCAM, built-in ASIC, FIB, Class C timing support, SyncE, ACL support, QoS, front to back airflow, PTP |
| Form Factor: | Plug-in module |
| Height: | 4.27 cm |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Interfaces: | 32 x 1Gb Ethernet/10Gb Ethernet/25Gb Ethernet ¦ 16 x 1Gb Ethernet/10Gb Ethernet/25Gb Ethernet/50Gb Ethernet ¦ 2 x 40Gb Ethernet/100Gb Ethernet/400Gb Ethernet |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | IPv4, IPv6 |
| OS Required: | Cisco IOS XR 7.10.1 or later |
| Performance: | Maximum throughput: 2.4 Tbps |
| Ports: | 25 Gigabit Ethernet x 32 + 50 Gigabit Ethernet x 16 + 400Gb Ethernet x 2 |
| Power Consumption Operational: | 291 watt |
| Remote Management Protocol: | IPv4, IPv6 |
| Software Included: | MPLS LSR License |
| Version: | original |
| Weight: | 6.57 kg |
| Width: | 42.9 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| EU Data-Act-Url: | https://www.cisco.com/site/de/de/about/sitemap.html |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switch Modules International.pdf |
NCS 5700 32X25G + 16x50G + 2x400G Base Macsec LC Bundle
| Bundled with: | (NC57-48Q2D-S-RTU) NCS 5700 32X1/10/25G + 16x1/10/25/50G + 2x400G Linecard Scale Right To Use License |
|---|---|
| Capacity: | IPv4 routes: 5000000 ¦ IPv6 routes: 2000000 |
| Compliant Standards: | IEEE 1588v1 |
| Compliant Standards: | CAN/CSA C22.2 No. 60950-1 Second Edition, Directive 2004/108/EC, Directive 2006/95/EC, GR-1089-CORE, GR-63-CORE, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, GB 4943, 47 CFR Part 15 Class A, AS/NZS CISP |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 50 Gigabit Ethernet, 100 Gigabit Ethernet, 400 Gigabit Ethernet |
| Depth: | 43.32 cm |
| Designed For: | P/N: NCS-5504, NCS-5504-MBH, NCS-5508, NCS-5508-MBH, NCS-5516, NCS-5516-MBH |
| Device Type: | Expansion module |
| Features: | MACsec support, on-chip TCAM, built-in ASIC, FIB, Class C timing support, SyncE, ACL support, QoS, front to back airflow, PTP |
| Form Factor: | Plug-in module |
| Height: | 4.27 cm |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Interfaces: | 32 x 1Gb Ethernet/10Gb Ethernet/25Gb Ethernet ¦ 16 x 1Gb Ethernet/10Gb Ethernet/25Gb Ethernet/50Gb Ethernet ¦ 2 x 40Gb Ethernet/100Gb Ethernet/400Gb Ethernet |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Network / Transport Protocol: | IPv4, IPv6 |
| OS Required: | Cisco IOS XR 7.10.1 or later |
| Performance: | Maximum throughput: 2.4 Tbps |
| Ports: | 25 Gigabit Ethernet x 32 + 50 Gigabit Ethernet x 16 + 400Gb Ethernet x 2 |
| Power Consumption Operational: | 291 watt |
| Remote Management Protocol: | IPv4, IPv6 |
| Software Included: | MPLS LSR License |
| Version: | original |
| Weight: | 6.57 kg |
| Width: | 42.9 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| EU Data-Act-Url: | https://www.cisco.com/site/de/de/about/sitemap.html |
