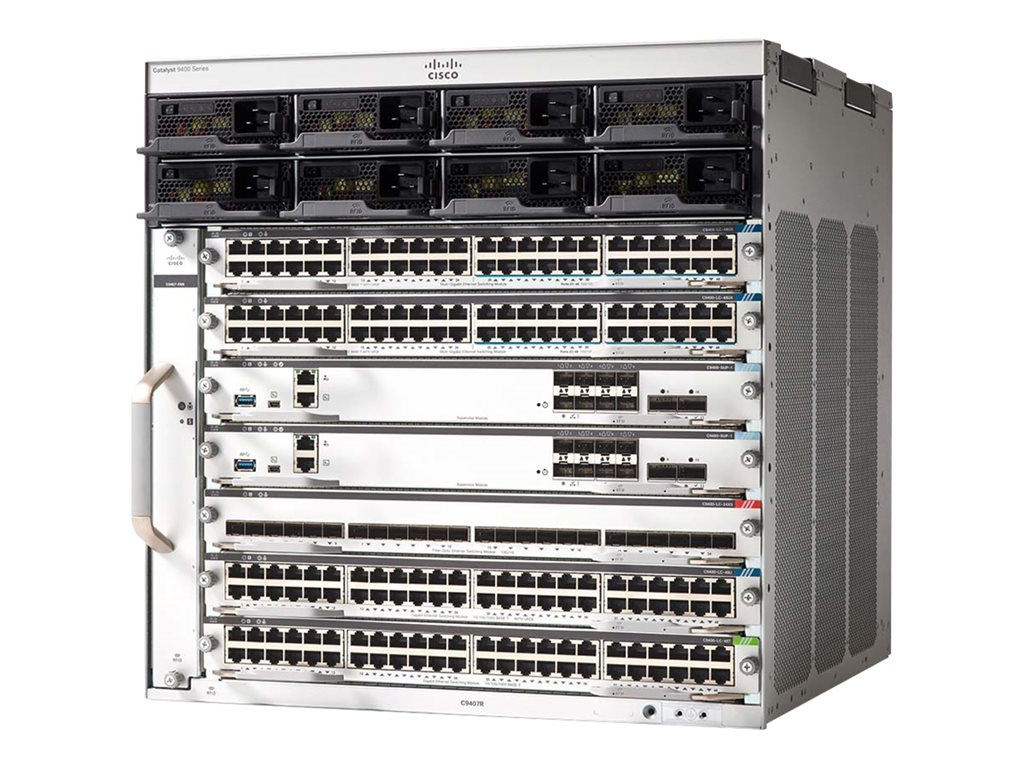

Cisco C9407R-96U-BNDL-E
Catalyst 9400 Series 7 slot, Sup, 2xC9400-LC-48U , DNA-E LIC
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Catalyst 9400 Series 7 slot, Sup, 2xC9400-LC-48U , DNA-E LIC
| Built-in Devices: | 240 GB SSD |
|---|---|
| Capacity: | MAC addresses: 64000 ¦ IPv4 routing entries: 144000 ¦ FNF entries (IPv4/IPv6): up to 384000/192000 ¦ VLAN IDs: 4096 ¦ PVT instances: 3001 ¦ STP Virtual Ports for PVST: 13000 ¦ STP Virtual Ports for MST: 13000 ¦ Switched virtual interfaces (SVIs): 1000 ¦ I |
| Compliant Standards: | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, EN 50121-4, EN 300 386 V1.6.1, ETSI 300 019, EN 55022 Class A, EN 300 386, ETS 300 019-2-1 Cla, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Depth: | 41.4 cm |
| Device Type: | Switch - 96 ports - with Cisco Catalyst 9400 DNA Essential License, Cisco Catalyst 9400 Series Supervisor 1XL, 2x Cisco Catalyst 9400 Series 48-Port UPOE+ 10/100/1000 (RJ-45) |
| Enclosure Type: | Side to side airflow rack-mountable 10U |
| Expansion Slots: | 5 (total) / 3 (free) x line-card slot ¦ 2 (total) / 1 (free) x supervisor slot |
| Features: | Port Aggregation Protocol (PAgP) support, Energy Efficient Ethernet, Precision Time Protocol (PTP), TrustSec support |
| Flash Memory: | 10 GB |
| Height: | 44.22 cm |
| Humidity Range Operating: | 10 - 95% (non-condensing) |
| Humidity Range Storage: | 10 - 95% (non-condensing) |
| Installed Modules Qty (Max): | 3 (installed) / 7 (max) |
| Interfaces: | 96 x 1000Base-T RJ-45 UPOE+ |
| Jumbo Frame Support: | 9198 bytes |
| MTBF: | 1,571,010 hours |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 45 °C |
| Max Storage Temperature: | 70 °C |
| Max Supported Qty: | 8 |
| Min Operating Temperature: | -5 °C |
| Min Storage Temperature: | -40 °C |
| OS Required: | Cisco IOS XE 16.12 |
| Performance: | Centralised throughput: 1.44 Tbps ¦ Per-slot switching capacity: 120 Gbps ¦ Forwarding rate for IPv4: 900 Mpps ¦ Forwarding rate for IPv6 (95-byte packets): 782.6 Mpps |
| PoE Budget: | 65 W |
| Ports: | 96 x 10/100/1000 (UPOE+) |
| Power Device: | Internal power supply (not installed) - hot-plug |
| Power Over Ethernet (PoE): | UPOE+ |
| Power Redundancy: | Optional |
| Power Redundancy Scheme: | N+N (with optional power supply) |
| RAM: | 16 GB |
| Version: | original |
| Weight: | 28.58 kg |
| Width: | 43.94 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| EU Data-Act-Url: | https://www.cisco.com/site/de/de/about/sitemap.html |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
Catalyst 9400 Series 7 slot, Sup, 2xC9400-LC-48U , DNA-E LIC
| Built-in Devices: | 240 GB SSD |
|---|---|
| Capacity: | MAC addresses: 64000 ¦ IPv4 routing entries: 144000 ¦ FNF entries (IPv4/IPv6): up to 384000/192000 ¦ VLAN IDs: 4096 ¦ PVT instances: 3001 ¦ STP Virtual Ports for PVST: 13000 ¦ STP Virtual Ports for MST: 13000 ¦ Switched virtual interfaces (SVIs): 1000 ¦ I |
| Compliant Standards: | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, EN 50121-4, EN 300 386 V1.6.1, ETSI 300 019, EN 55022 Class A, EN 300 386, ETS 300 019-2-1 Cla, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Depth: | 41.4 cm |
| Device Type: | Switch - 96 ports - with Cisco Catalyst 9400 DNA Essential License, Cisco Catalyst 9400 Series Supervisor 1XL, 2x Cisco Catalyst 9400 Series 48-Port UPOE+ 10/100/1000 (RJ-45) |
| Enclosure Type: | Side to side airflow rack-mountable 10U |
| Expansion Slots: | 5 (total) / 3 (free) x line-card slot ¦ 2 (total) / 1 (free) x supervisor slot |
| Features: | Port Aggregation Protocol (PAgP) support, Energy Efficient Ethernet, Precision Time Protocol (PTP), TrustSec support |
| Flash Memory: | 10 GB |
| Height: | 44.22 cm |
| Humidity Range Operating: | 10 - 95% (non-condensing) |
| Humidity Range Storage: | 10 - 95% (non-condensing) |
| Installed Modules Qty (Max): | 3 (installed) / 7 (max) |
| Interfaces: | 96 x 1000Base-T RJ-45 UPOE+ |
| Jumbo Frame Support: | 9198 bytes |
| MTBF: | 1,571,010 hours |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 45 °C |
| Max Storage Temperature: | 70 °C |
| Max Supported Qty: | 8 |
| Min Operating Temperature: | -5 °C |
| Min Storage Temperature: | -40 °C |
| OS Required: | Cisco IOS XE 16.12 |
| Performance: | Centralised throughput: 1.44 Tbps ¦ Per-slot switching capacity: 120 Gbps ¦ Forwarding rate for IPv4: 900 Mpps ¦ Forwarding rate for IPv6 (95-byte packets): 782.6 Mpps |
| PoE Budget: | 65 W |
| Ports: | 96 x 10/100/1000 (UPOE+) |
| Power Device: | Internal power supply (not installed) - hot-plug |
| Power Over Ethernet (PoE): | UPOE+ |
| Power Redundancy: | Optional |
| Power Redundancy Scheme: | N+N (with optional power supply) |
| RAM: | 16 GB |
| Version: | original |
| Weight: | 28.58 kg |
| Width: | 43.94 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| EU Data-Act-Url: | https://www.cisco.com/site/de/de/about/sitemap.html |
