Cisco A901-6CZ-FT-D

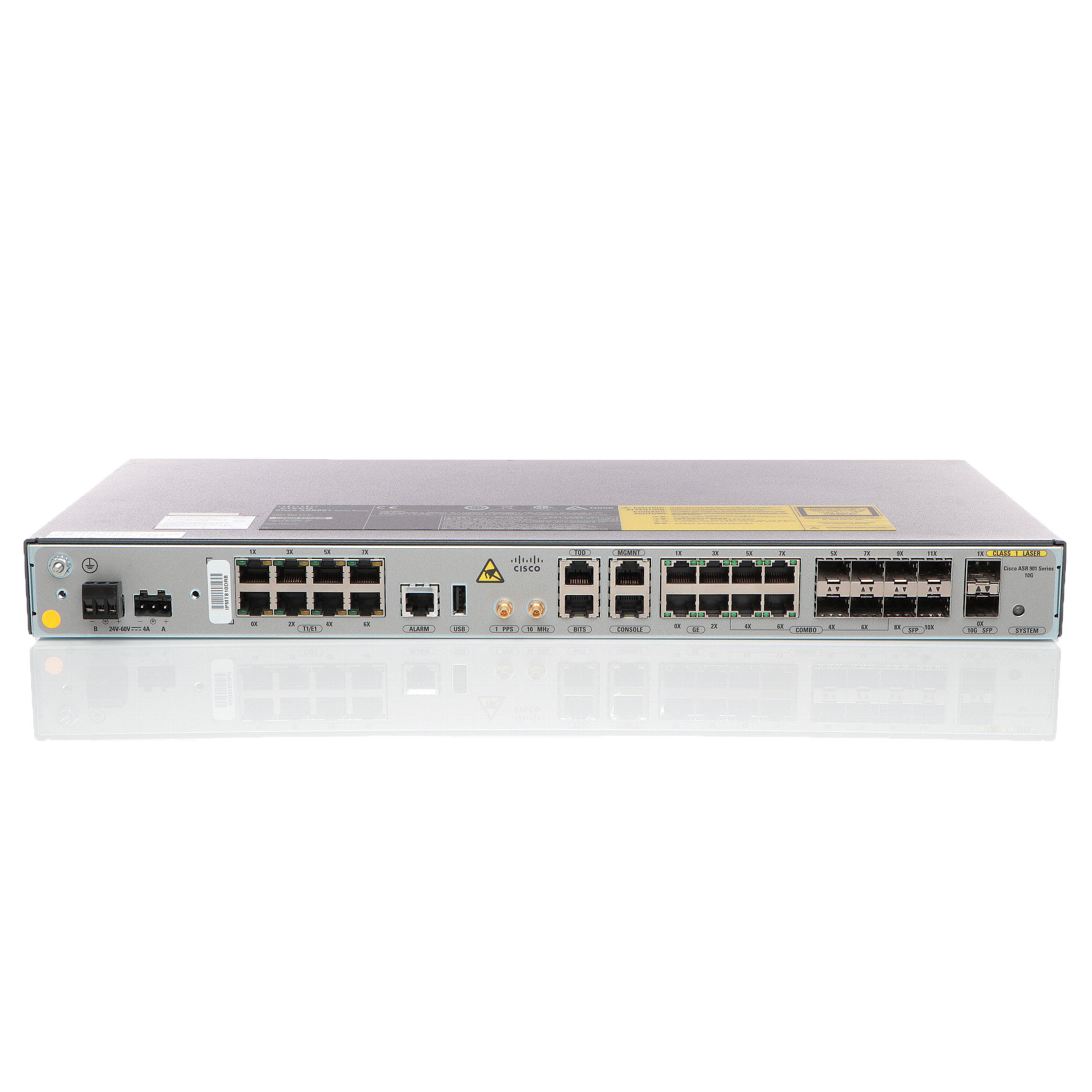

Cisco ASR 901 10G - Router - GigE, TDM, 10 GigE - rack-mountable
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Cisco ASR 901 10G - Router - GigE, TDM, 10 GigE - rack-mountable
| Authentication Method: | RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
|---|---|
| Compliant Standards: | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ag, NEBS level 3, CISPR 22 Class A, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, VCCI Class A ITE, EN55024, EN5502 |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, TDM, 10 Gigabit Ethernet |
| Depth: | 23.1 cm |
| Device Type: | Router |
| Enclosure Type: | Rack-mountable - 1U |
| Features: | IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Equal-Cost Multipath (ECMP), LLDP support, DHCP c |
| Flash Memory: | 128 MB |
| Framing Format: | G.703 |
| Height: | 4.32 cm |
| Humidity Range Operating: | 10 - 85% (non-condensing) |
| Installed Qty: | 2 (installed) / 2 (max) |
| Interfaces: | WAN: 8 x T1/E1 ¦ 8 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 8 x SFP (mini-GBIC) ¦ 2 x 10Gb Ethernet - SFP+ ¦ Serial: 1 x console - RJ-45 ¦ USB: 1 x ¦ Management: 1 x RJ-45 ¦ 2 x RJ-45 |
| Line Rate: | T-1/E-1 |
| MTBF: | 378,490 hours |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 65 °C |
| Min Operating Temperature: | -40 °C |
| Power Consumption Operational: | 67 Watt |
| Power Device: | Internal power supply |
| Power Redundancy: | Yes |
| RAM: | 512 MB DDR3 SDRAM |
| Remote Management Protocol: | SNMP, Telnet, CLI |
| Routing Protocol: | OSPF, IS-IS, BGP, static IP routing, ECMP, MPLS, Bidirectional Forwarding Detection (BFD) |
| Version: | original |
| Voltage Required: | DC -24/-60 V |
| Weight: | 3.7 kg |
| Width: | 44.45 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| Warnings: | Warnings Routers International.pdf |
| Safety instructions: | Safety instructions Routers International.pdf |
