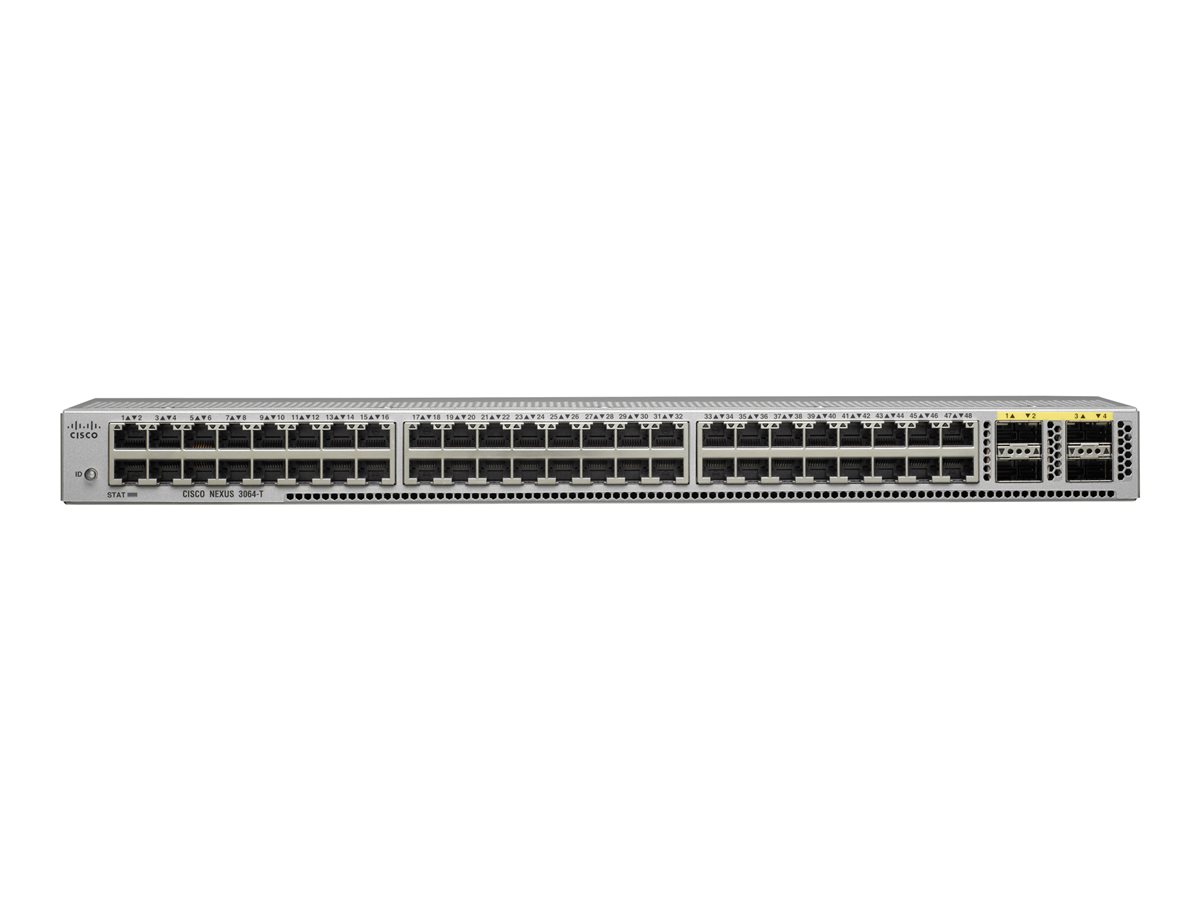

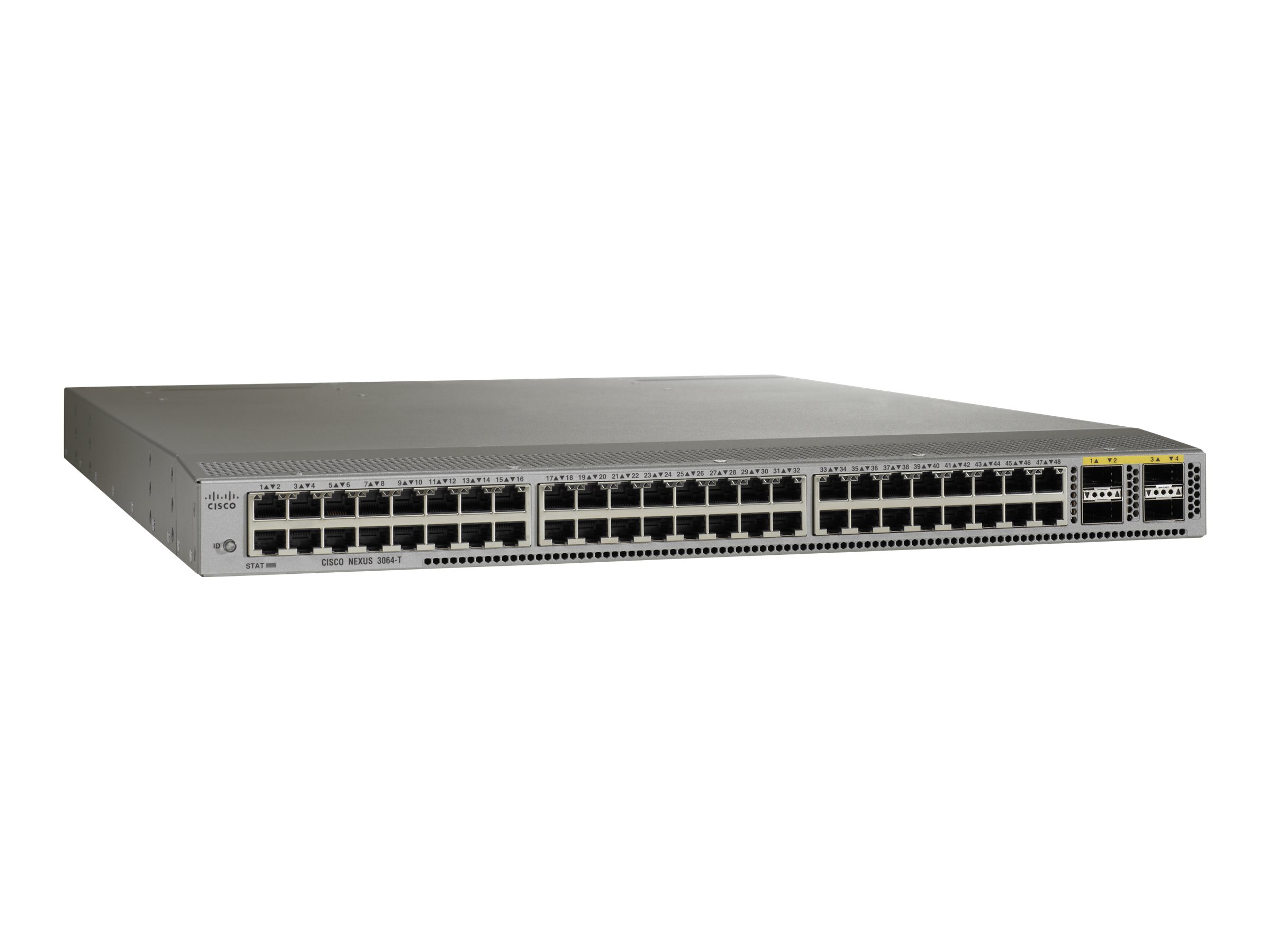

Cisco N3K-C3064TQ-10GT
Nexus 3064-T, 48 x 10GBase-T and 4 QSFP ports
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Nexus 3064-T, 48 x 10GBase-T and 4 QSFP ports
| Authentication Method: | RADIUS, TACACS+, MS-CHAP, Secure Shell v.2 (SSH2) |
|---|---|
| Capacity: | Virtual interfaces (VLANs): 4096 ¦ Multiple Spanning Tree Protocol instances: 64 ¦ Rapid Spanning Tree Protocol instances: 512 ¦ ACL entries (ingress): 2000 ¦ ACL entries (egress): 1000 ¦ OSPF routes: 256 |
| Compliant Standards: | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, GB 4943, Directive 2004/108/EC, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IE, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3ba, IEEE 1588-2008 |
| Depth: | 57 cm |
| Device Type: | Switch - 48 ports - L3 - Managed |
| Enclosure Type: | Front to back airflow rack-mountable 1U |
| Encryption Algorithm: | AES |
| Features: | BOOTP support, trunking, VLAN support, Syslog support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Weighted Random Early Detection (WRED), sFlow, Rapid Spanning Tree Protocol ( |
| Flash Memory: | 2 GB |
| Height: | 4.4 cm |
| Humidity Range Operating: | 10 - 85% (non-condensing) |
| Humidity Range Storage: | 5 - 95% (non-condensing) |
| Installed Qty: | 2 |
| Interfaces: | 1 x console RJ-45 management ¦ 2 x 1000Base-T RJ-45 management ¦ 48 x 10GBase-T RJ-45 ¦ 4 x 40Gbit LAN QSFP+ - QSFP+ (breakout compatible) ¦ 1 x USB USB Type A |
| Jumbo Frame Support: | 9216 bytes |
| MAC Address Table Size: | 128K entries |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 70 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Switching capacity: 1.28 Tbps ¦ Forwarding performance: 950 Mpps |
| Ports: | 48 x 10GBase-T + 4 x QSFP+ (breakout compatible) |
| Power Device: | Internal power supply - hot-plug |
| Power Provided: | 500 Watt |
| Power Redundancy: | Yes |
| Power Redundancy Scheme: | 1+1 |
| Remote Management Protocol: | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI |
| Routing Protocol: | OSPF, RIP-2, IGMPv2, HSRP, VRRP, OSPFv2, PIM-SM, IGMPv3, OSPFv3, PIM-SSM, MSDP, static IPv4 routing, static IPv6 routing, ECMP, Bidirectional Forwarding Detection (BFD), CIDR |
| Software Included: | Cisco NX-OS Layer 3 Base Services |
| Subtype: | 10 Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 9.5 kg |
| Width: | 43.9 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| EU Data-Act-Url: | https://www.cisco.com/site/de/de/about/sitemap.html |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
Nexus 3064-T, 48 x 10GBase-T and 4 QSFP ports
| Authentication Method: | RADIUS, TACACS+, MS-CHAP, Secure Shell v.2 (SSH2) |
|---|---|
| Capacity: | Virtual interfaces (VLANs): 4096 ¦ Multiple Spanning Tree Protocol instances: 64 ¦ Rapid Spanning Tree Protocol instances: 512 ¦ ACL entries (ingress): 2000 ¦ ACL entries (egress): 1000 ¦ OSPF routes: 256 |
| Compliant Standards: | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, GB 4943, Directive 2004/108/EC, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IE, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3ba, IEEE 1588-2008 |
| Depth: | 57 cm |
| Device Type: | Switch - 48 ports - L3 - Managed |
| Enclosure Type: | Front to back airflow rack-mountable 1U |
| Encryption Algorithm: | AES |
| Features: | BOOTP support, trunking, VLAN support, Syslog support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Weighted Random Early Detection (WRED), sFlow, Rapid Spanning Tree Protocol ( |
| Flash Memory: | 2 GB |
| Height: | 4.4 cm |
| Humidity Range Operating: | 10 - 85% (non-condensing) |
| Humidity Range Storage: | 5 - 95% (non-condensing) |
| Installed Qty: | 2 |
| Interfaces: | 1 x console RJ-45 management ¦ 2 x 1000Base-T RJ-45 management ¦ 48 x 10GBase-T RJ-45 ¦ 4 x 40Gbit LAN QSFP+ - QSFP+ (breakout compatible) ¦ 1 x USB USB Type A |
| Jumbo Frame Support: | 9216 bytes |
| MAC Address Table Size: | 128K entries |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 70 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Switching capacity: 1.28 Tbps ¦ Forwarding performance: 950 Mpps |
| Ports: | 48 x 10GBase-T + 4 x QSFP+ (breakout compatible) |
| Power Device: | Internal power supply - hot-plug |
| Power Provided: | 500 Watt |
| Power Redundancy: | Yes |
| Power Redundancy Scheme: | 1+1 |
| Remote Management Protocol: | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI |
| Routing Protocol: | OSPF, RIP-2, IGMPv2, HSRP, VRRP, OSPFv2, PIM-SM, IGMPv3, OSPFv3, PIM-SSM, MSDP, static IPv4 routing, static IPv6 routing, ECMP, Bidirectional Forwarding Detection (BFD), CIDR |
| Software Included: | Cisco NX-OS Layer 3 Base Services |
| Subtype: | 10 Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 9.5 kg |
| Width: | 43.9 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| EU Data-Act-Url: | https://www.cisco.com/site/de/de/about/sitemap.html |
