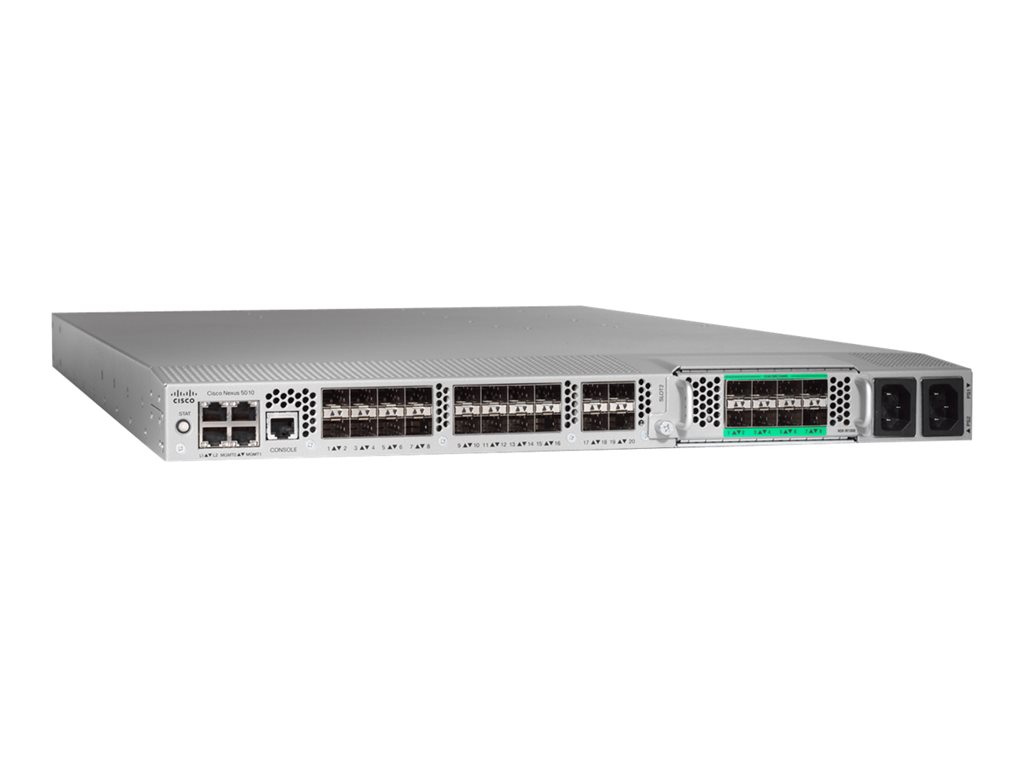

Cisco N5K-C5010P-B-S
Nexus 5010 Solutions Kit, 8G FC Unified Fabric
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Nexus 5010 Solutions Kit, 8G FC Unified Fabric
| Authentication Method: | Secure Shell (SSH), RADIUS, TACACS+, MS-CHAP, Secure Shell v.2 (SSH2) |
|---|---|
| Cables Included: | 4 x network cable - 5 m |
| Compliant Standards: | FCC Class A certified, CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, EN 5, IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP) |
| Depth: | 76.2 cm |
| Device Type: | Switch - 20 ports - Managed - with 2x Cisco MDS 9000 Family 2/4/8-Gbps Fibre Channel-Shortwave, SFP+, LC (DS-SFP-FC8G-SW), 2x Cisco 10GBASE-SR SFP+ Module (SFP-10G-SR), N5K 8G FC Expansion Module for LAB Bundle (N5K-M1060-LAB) |
| Enclosure Type: | Desktop 1U |
| Encryption Algorithm: | AES |
| Expansion Slots: | 1 (total) / 0 (free) x Expansion Slot |
| Features: | Layer 2 switching, trunking, VLAN support, Syslog support, packet filtering, Weighted Round Robin (WRR) queuing, MAC address filtering, Broadcast Storm Control, IPv6 support, ASIC VPN, Multicast Storm Control, Unicast Storm Control, Per-VLAN Spanning Tree |
| Fibre Channel: | FC-DA, FC-FS, FC-GS-3, FC-GS-4, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-SW-2, FC-SW-3, FC-SP, FCP, FCP-2, FC-PI-2, FC-BB-5, FC-FS-2, FCP-3, FC-LS, FC-MI-2, FC-PI-4 |
| Height: | 4.4 cm |
| Humidity Range Operating: | 5 - 95% |
| Installed Qty: | 2 |
| Interfaces: | 1 x console RJ-45 management ¦ 2 x 1000Base-T RJ-45 management ¦ 8 x 10Gb Ethernet / 1Gb Ethernet - SFP/SFP+ ¦ 12 x 10Gb Ethernet - SFP+ ¦ 6 x 8Gb Fibre Channel - SFP/SFP+ |
| Jumbo Frame Support: | 9216 bytes |
| MAC Address Table Size: | 16K entries |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 40 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 0 °C |
| Ports: | 20 x SFP+ + 6 x 8Gb Fibre Channel SFP+ |
| Power Device: | Internal power supply - hot-plug |
| Power Redundancy: | Yes |
| Power Redundancy Scheme: | 1+1 |
| Remote Management Protocol: | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SMI-S, SSH-2, CLI |
| Software Included: | Storage Protocol Services |
| Subtype: | 10 Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Width: | 43.9 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| EU Data-Act-Url: | https://www.cisco.com/site/de/de/about/sitemap.html |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
