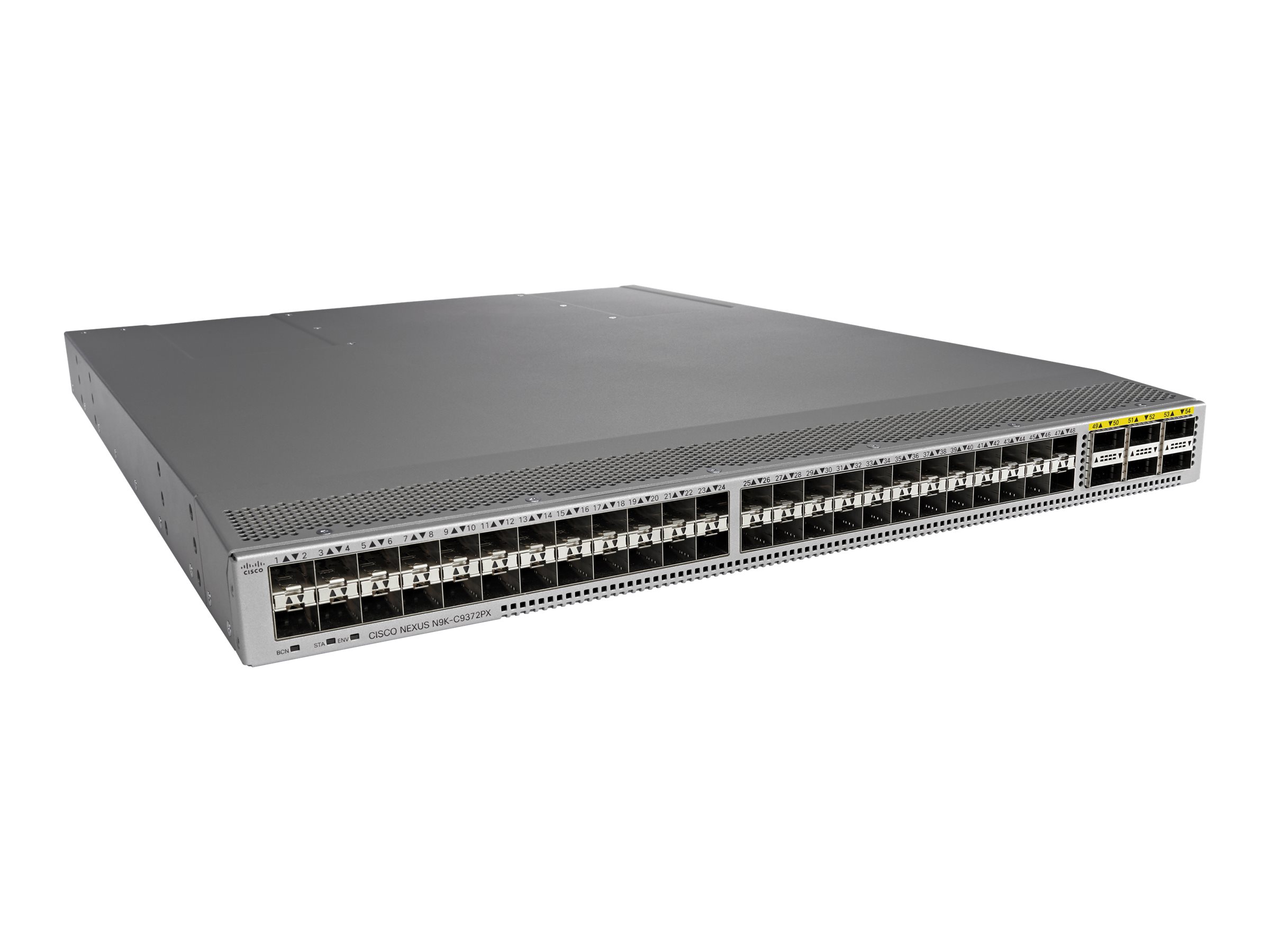

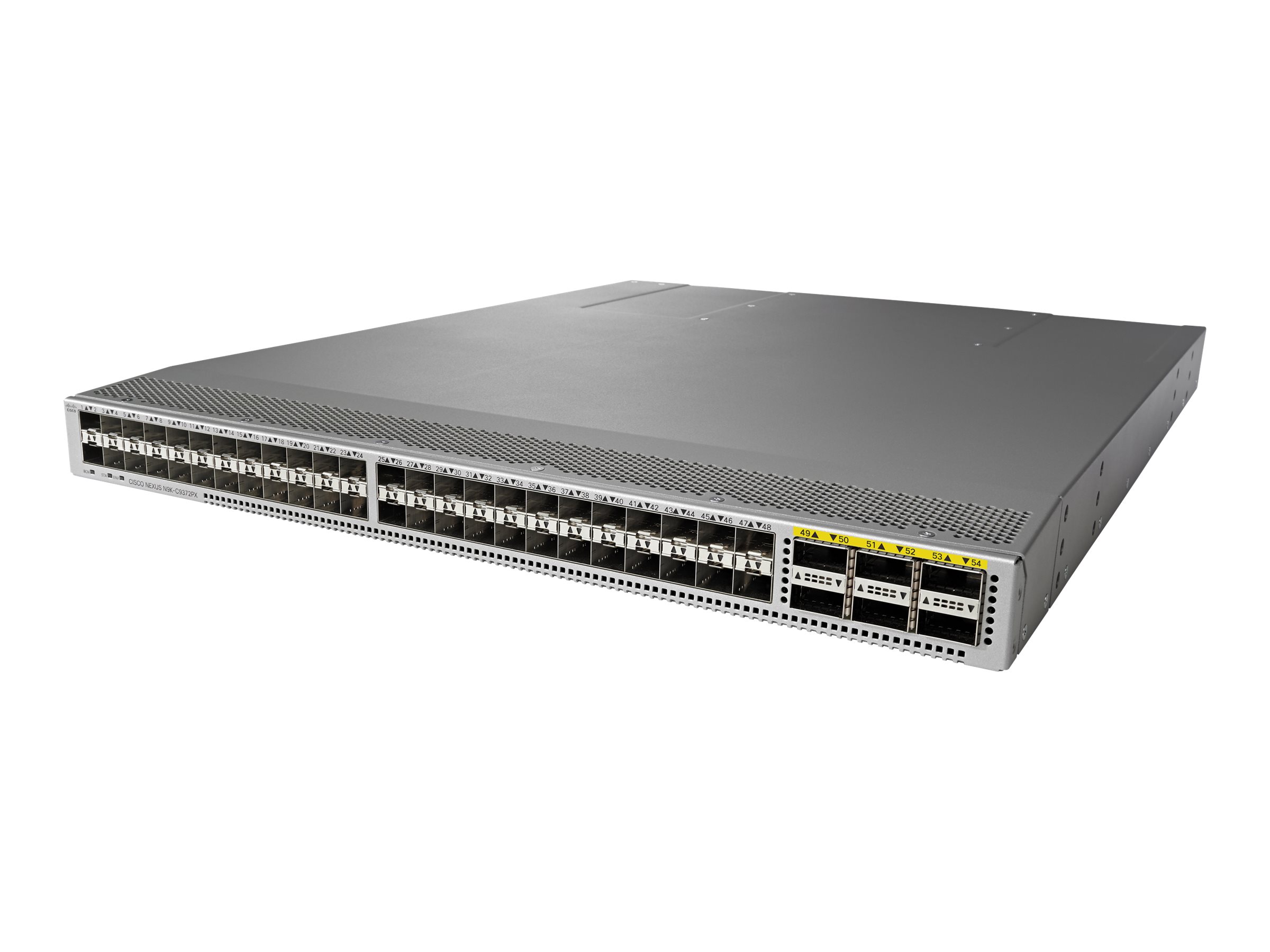

Cisco N9K-C9372PX-E
Nexus 9300 with 48p 10G SFP and 6p 40G QSFP
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Nexus 9300 with 48p 10G SFP and 6p 40G QSFP
| Capacity: | Longest prefix match (LPM) entries (IPv4): 16000 ¦ Host table entries (IPv4): 208000 ¦ IPv4 routes (Multicast): 32000 ¦ Virtual interfaces (VLANs): 4096 ¦ Equal-Cost Multipathing (ECMP) ways: 64 ¦ Multiple Spanning Tree Protocol instances: 64 ¦ Rapid Per- |
|---|---|
| Compliant Standards: | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, EMC, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1 Second Edition, RoHS, GB 4943, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Editio |
| Depth: | 57.1 cm |
| Device Type: | Switch - 48 ports - L3 - Managed |
| Enclosure Type: | Desktop, rack-mountable 1U |
| Features: | VLAN support, IGMP snooping, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Per-VLAN Rapid Spanning Tree (PVRST), Hot Standby Router Protocol (HSRP) support, Virtual Routing and Forwarding (VRF |
| Height: | 4.4 cm |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Interfaces: | 48 x 10GBase-T SFP+ downlink ¦ 2 x USB ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x serial (RS-232) RJ-45 ¦ 6 x 40Gbit LAN QSFP+ uplink |
| MAC Address Table Size: | 96K entries |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 70 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Bandwidth: 1.44 Tbps |
| Ports: | 48 x 1 Gigabit / 10 Gigabit SFP+ + 6 x 40 Gigabit QSFP+ (uplink) |
| Power Device: | Internal power supply (not installed) - hot-plug |
| Power Redundancy: | Yes |
| Processor: | : 2.5 GHz |
| RAM: | 16 GB |

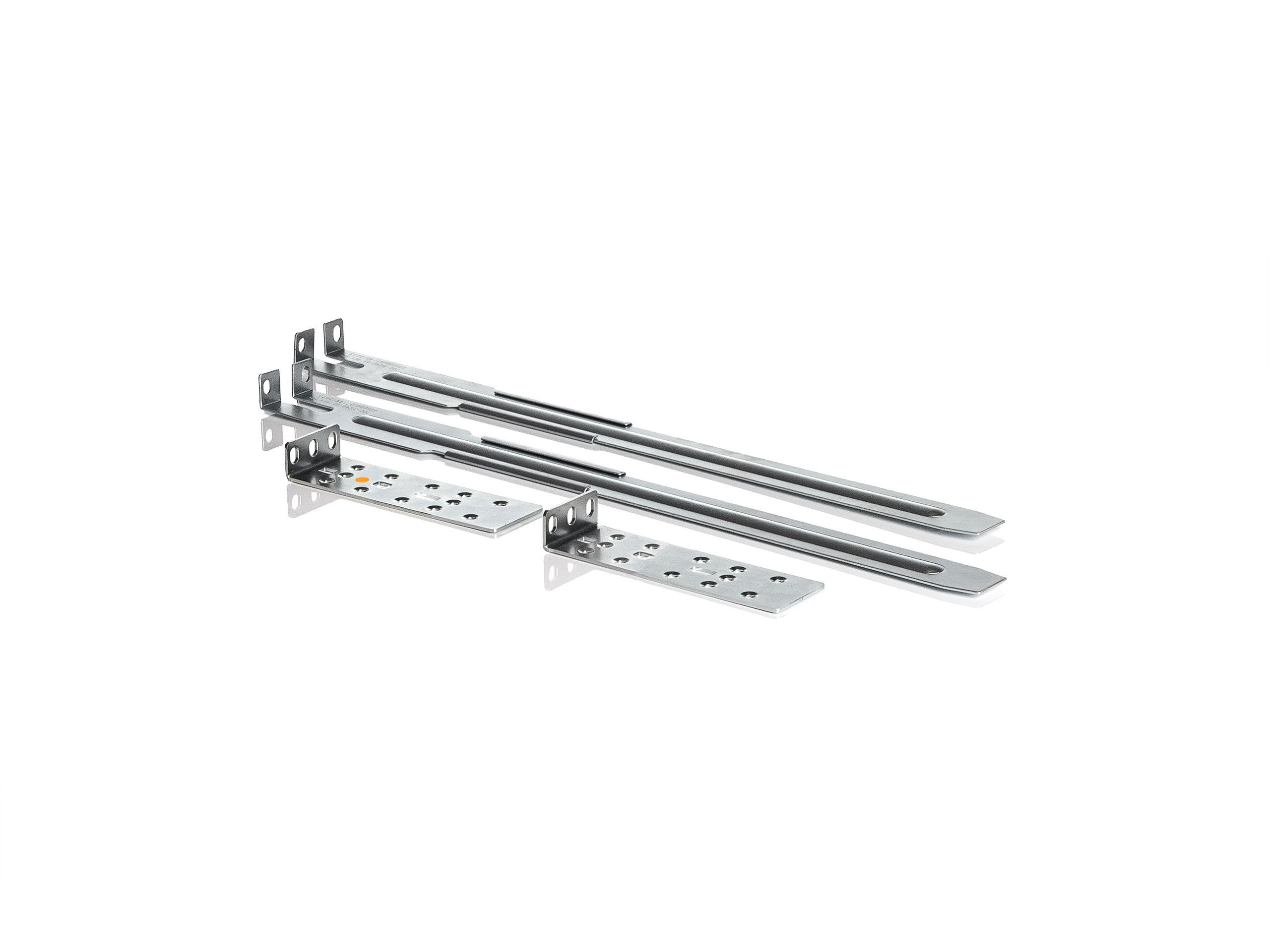

| Rack Mounting Kit: | Included |
| Software Included: | Cisco NX-OS |
| Subtype: | 10 Gigabit Ethernet |
| Version: | original |
| Weight: | 10.1 kg |
| Width: | 43.9 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
