| Authentication Method: | RADIUS, TACACS+, MS-CHAP, Secure Shell v.2 (SSH2) |
|---|---|
| Capacity: | Virtual interfaces (VLANs): 4096 ¦ ACL entries: 4096 ¦ IPv4 routes (Multicast): 24000 ¦ Host table entries (IPv4): 64000 ¦ Rapid Spanning Tree Protocol instances: 512 ¦ Multiple Spanning Tree Protocol instances: 64 |
| Compliant Standards: | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1 Second Edition, RoHS, GB 4943, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Seco, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP) |
| Depth: | 46.7 cm |

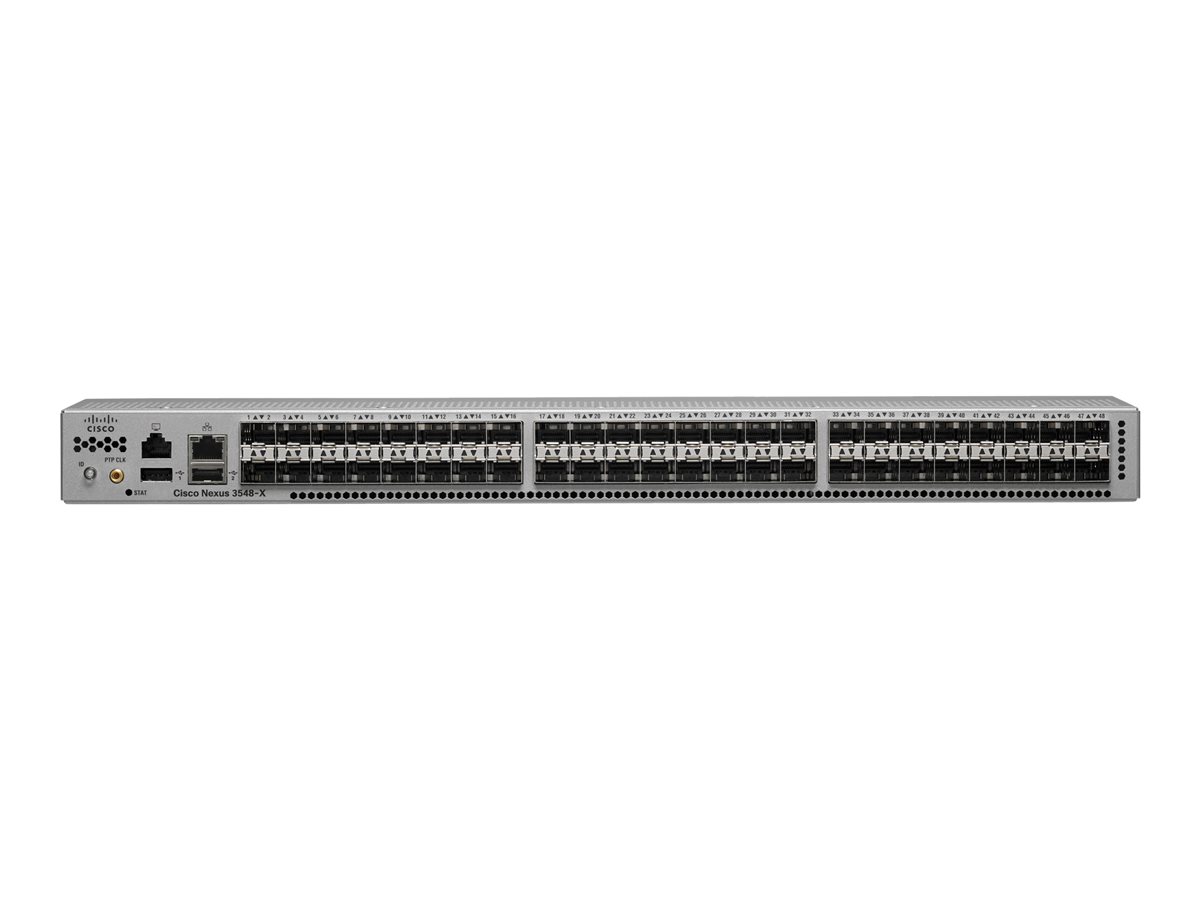

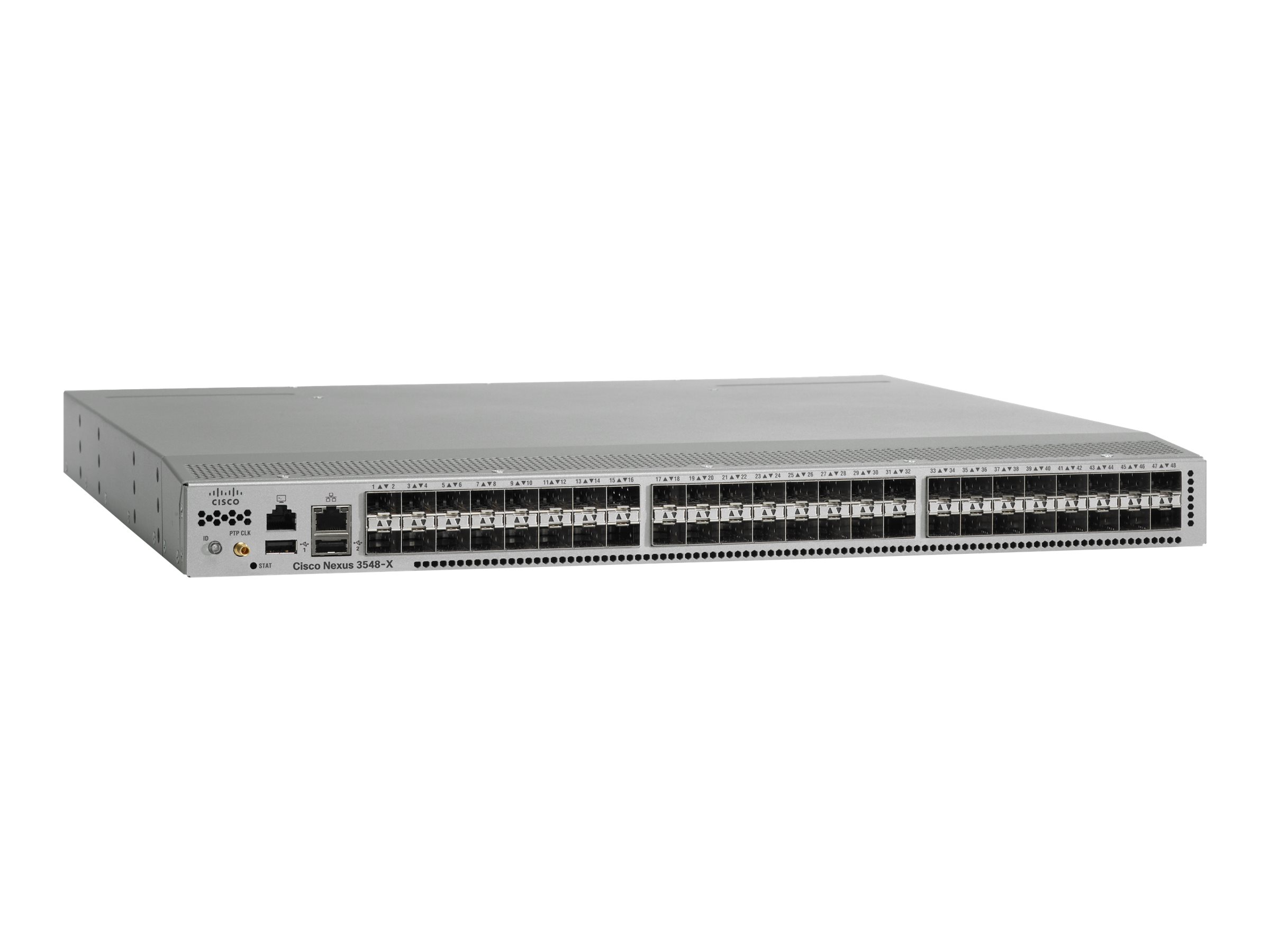

| Device Type: | Switch - 48 ports - L3 - Managed |
| Enclosure Type: | Back to front airflow rack-mountable 1U |
| Encryption Algorithm: | AES |
| Features: | NAT support, VLAN support, Syslog support, Broadcast Storm Control, Multicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protoc |
| Flash Memory: | 2 GB |
| Height: | 4.36 cm |
| Humidity Range Operating: | 10 - 85% (non-condensing) |
| Humidity Range Storage: | 5 - 95% (non-condensing) |
| Installed Qty: | 2 |
| Interfaces: | 1 x console RJ-45 management ¦ 2 x 1000Base-T RJ-45 management ¦ 48 x SFP+ ¦ 1 x USB |
| Jumbo Frame Support: | 9216 bytes |
| MAC Address Table Size: | 64K entries |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 70 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Switching capacity: 960 Gbps ¦ Forwarding performance: 720 Mpps |
| Ports: | 48 x 1 Gigabit / 10 Gigabit SFP+ |
| Power Device: | Internal power supply - hot-plug |
| Power Provided: | 400 Watt |
| Power Redundancy: | Yes |
| Power Redundancy Scheme: | 1+1 |
| Remote Management Protocol: | SNMP 1, SNMP 2, SNMP, RMON, Telnet, SNMP 3, SSH-2, CLI |
| Routing Protocol: | OSPF, RIP-2, BGP, EIGRP, IGMPv2, HSRP, VRRP, OSPFv2, PIM-SM, static IP routing, IGMPv3, PIM-SSM, MSDP |
| Subtype: | 10 Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Weight: | 7.9 kg |
| Width: | 43.9 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center@cisco.com |
| EU Data-Act-Url: | https://www.cisco.com/site/de/de/about/sitemap.html |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
