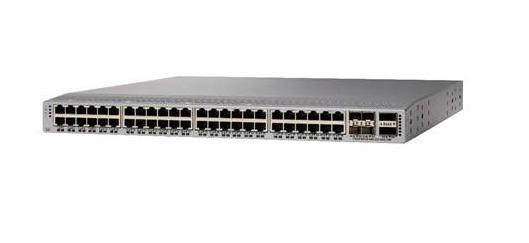

Cisco N9K-C9348GC-FXP
Nexus 9300 with 48p 100M/1GT, 4p 10/25G and 2p 40/100G QSFP28
Product images and accessories are provided by a content provider. Images may differ slightly from the original and are for illustrative purposes. Compatibility guarantee for accessories can not be guaranteed. The scope of delivery corresponds to the item description (if necessary identical item) Please note the product and condition description.
Nexus 9300 with 48p 100M/1GT, 4p 10/25G and 2p 40/100G QSFP28
| Built-in Devices: | 128 GB SSD |
|---|---|
| Cables Included: | 2 x power cable |
| Capacity: | Multiple Spanning Tree Protocol instances: 64 ¦ HSRP groups: 490 ¦ Per VLAN Rapid Spanning Tree instances: 4000 ¦ Maximum number of links in a port channel: 32 ¦ Maximum number of port channels: 512 ¦ ECMP paths: 64 ¦ Virtual Routing and Forwarding (VRF) |
| Compliant Standards: | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, RoHS, GB 4943, Directive 2004/108/EC, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, VCCI Cla |
| Depth: | 49.9 cm |
| Device Type: | Switch - 48 ports |
| Enclosure Type: | Rack-mountable 1U |
| Features: | Virtual PortChannel (vPC) technology, 4 fans, Virtual Extensible LAN (VXLAN), Open Shortest Path First (OSPF), Ethernet Virtual Private Network (EVPN), 40MB system buffer, N-Port ID virtualisation, Power On Auto Provisioning (POAP), Top-of-Rack (ToR), Swi |
| Height: | 4.4 cm |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Interfaces: | 48 x 1000Base-T ¦ 4 x 10/25GBase-T SFP28 ¦ 2 x 100Gbit/40Gbit LAN QSFP28 ¦ 1 x management RJ-45/SFP+ ¦ 1 x USB ¦ 1 x serial (RS-232) |
| MTBF: | 257,860 hours |
| Manufacturer: | Cisco Meraki |
| Max Operating Temperature: | 40 °C |
| Max Storage Temperature: | 70 °C |
| Max Supported Qty: | 2 |
| Min Operating Temperature: | 0 °C |
| Min Storage Temperature: | -40 °C |
| Performance: | Bandwidth: 2.6 Tbps ¦ Active SPAN sessions: 4 |
| Ports: | 48 x 1000Base-T + 4 x 10 Gigabit / 25 Gigabit SFP28 + 2 x 40 Gigabit / 100 Gigabit QSFP28 |
| Power Device: | Internal power supply - hot-plug |
| Power Provided: | 350 Watt |
| Power Redundancy Scheme: | N+1 |
| RAM: | 24 GB |
| Routing Protocol: | OSPF, RIP-2, BGP, EIGRP, HSRP, PIM-SM, MSDP, ECMP, MPLS, RSVP |
| Subtype: | Gigabit Ethernet |
| Version: | original |
| Voltage Required: | AC 120/230 V (50 - 60 Hz) |
| Weight: | 6.44 kg |
| Width: | 43.9 cm |
| GPSR - economic actor: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
|---|---|
| GPSR - product manufacturer: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| GPSR - EU responsible person: | Cisco Systems GmbH, Deutschland, Parkring 20, Garching, 85748, info-center @ cisco.com |
| Warnings: | Warnings Switches International.pdf |
| Safety instructions: | Safety instructions Switches International.pdf |
